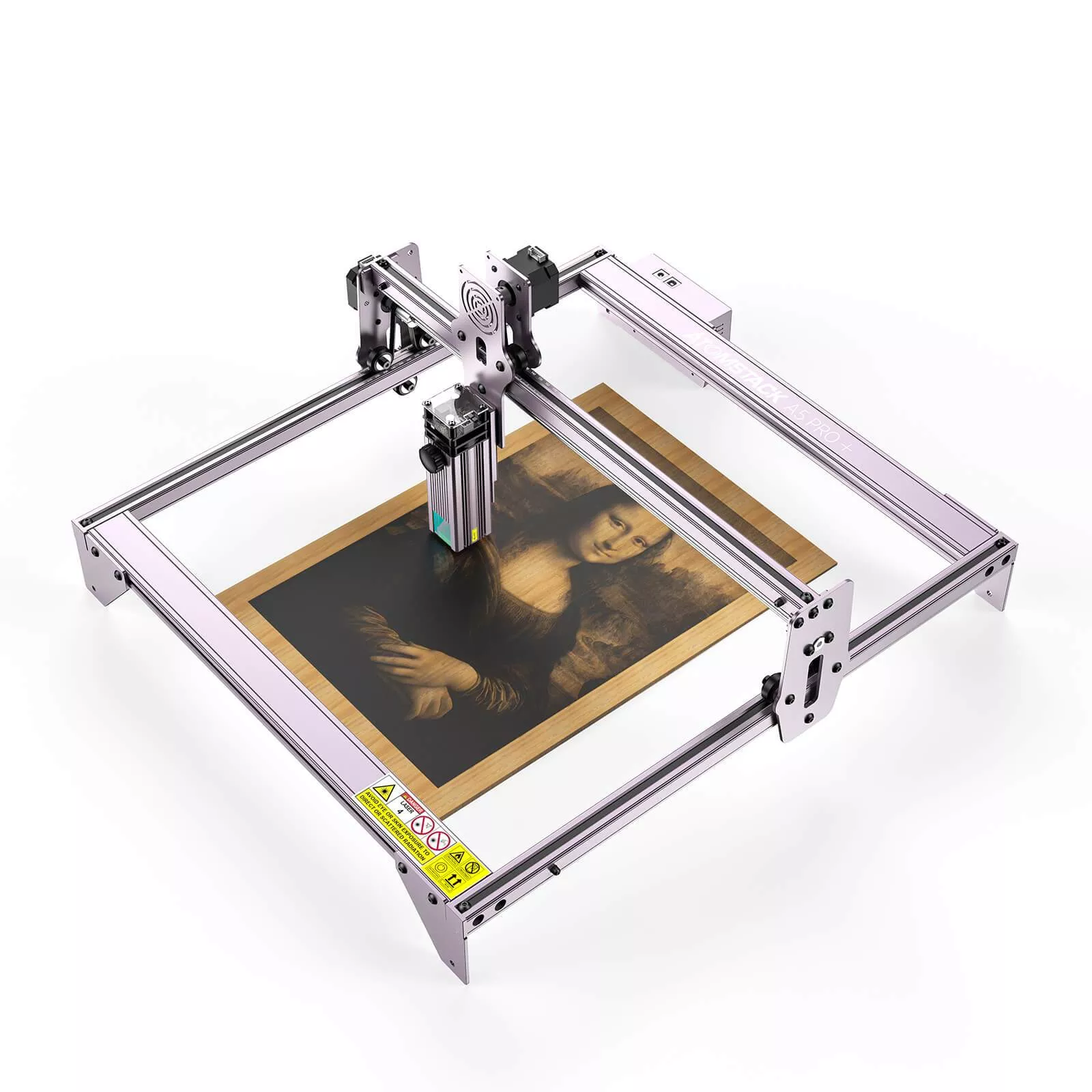

Upgraded ATOMSTACK A5 PRO+ 5W Optical Power Laser Cutting Machine
| Dimensions | 62 × 34.5 × 13 cm |
|---|---|

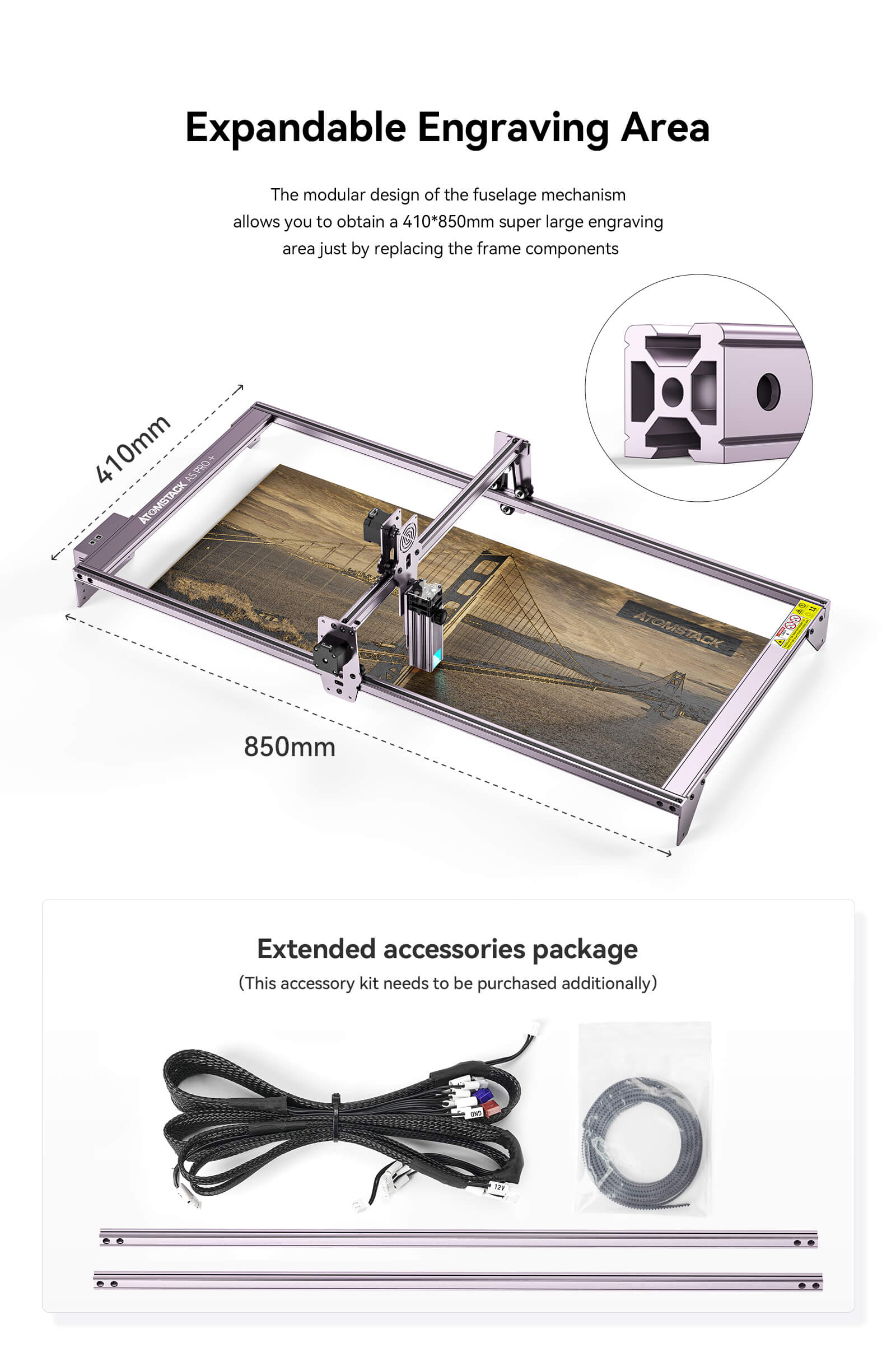

| Expansion Kit Support | Only on Y-Axis |

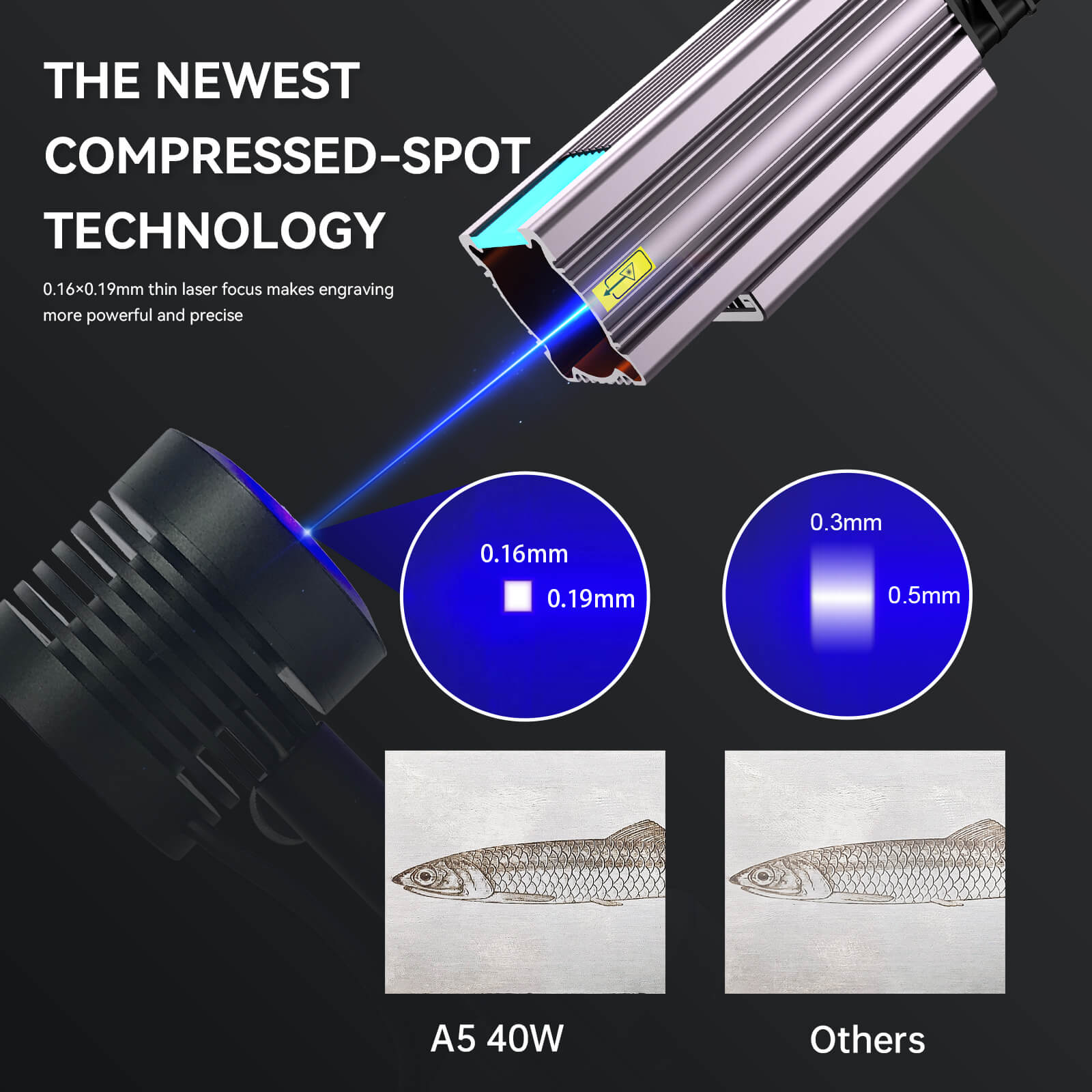

| Laser Spot Size | 0.16*0.19mm |
| Machine Power | 40W |
| Offline Control / Touch Screen | No |
| Optical Power | 5.5W |
| SD Card Support | No |
| Working Area | 410*400mm |
Book a Personalized Product Demo
Basic Specifications:
| Specification | Details |
|---|---|
| Model | A5 Pro+ |
| Electric Power | 40W |

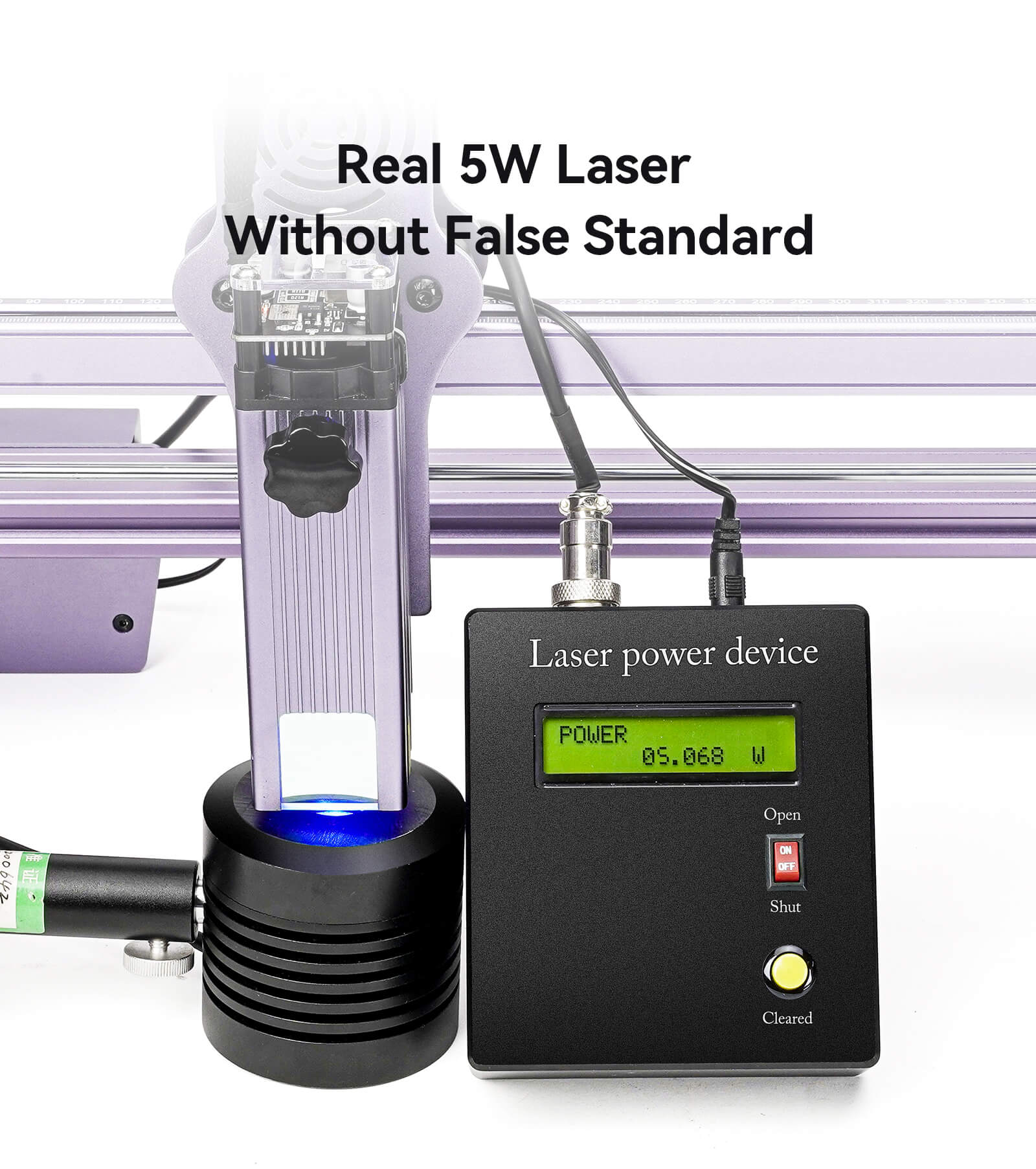

| Laser Power | 5.5–6W |

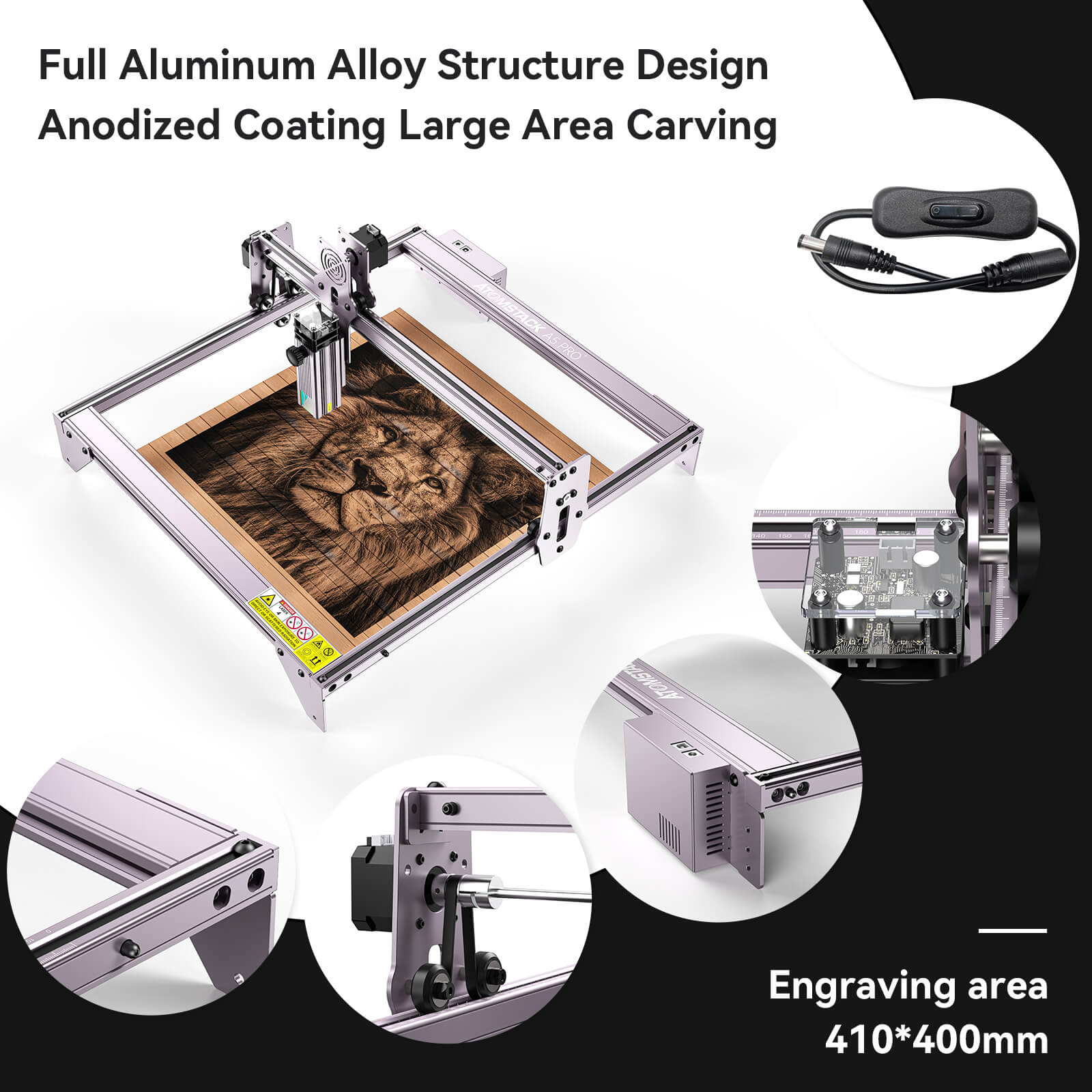

| Working Area | 410 × 400 mm |
| Data Transmission | USB |
| Wavelength | 445 ± 5 nm |

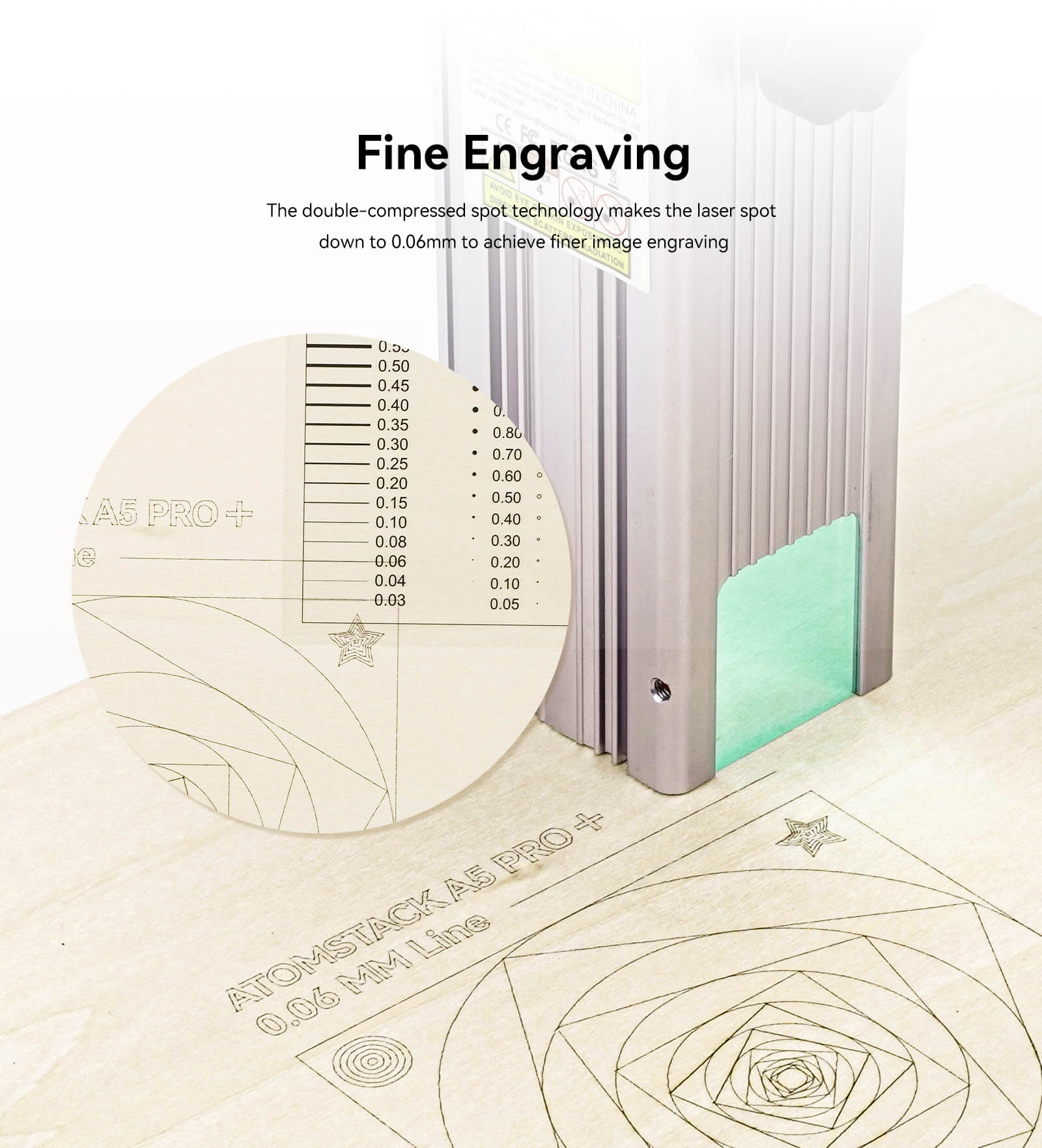

| Engraving Accuracy | 0.01 mm |

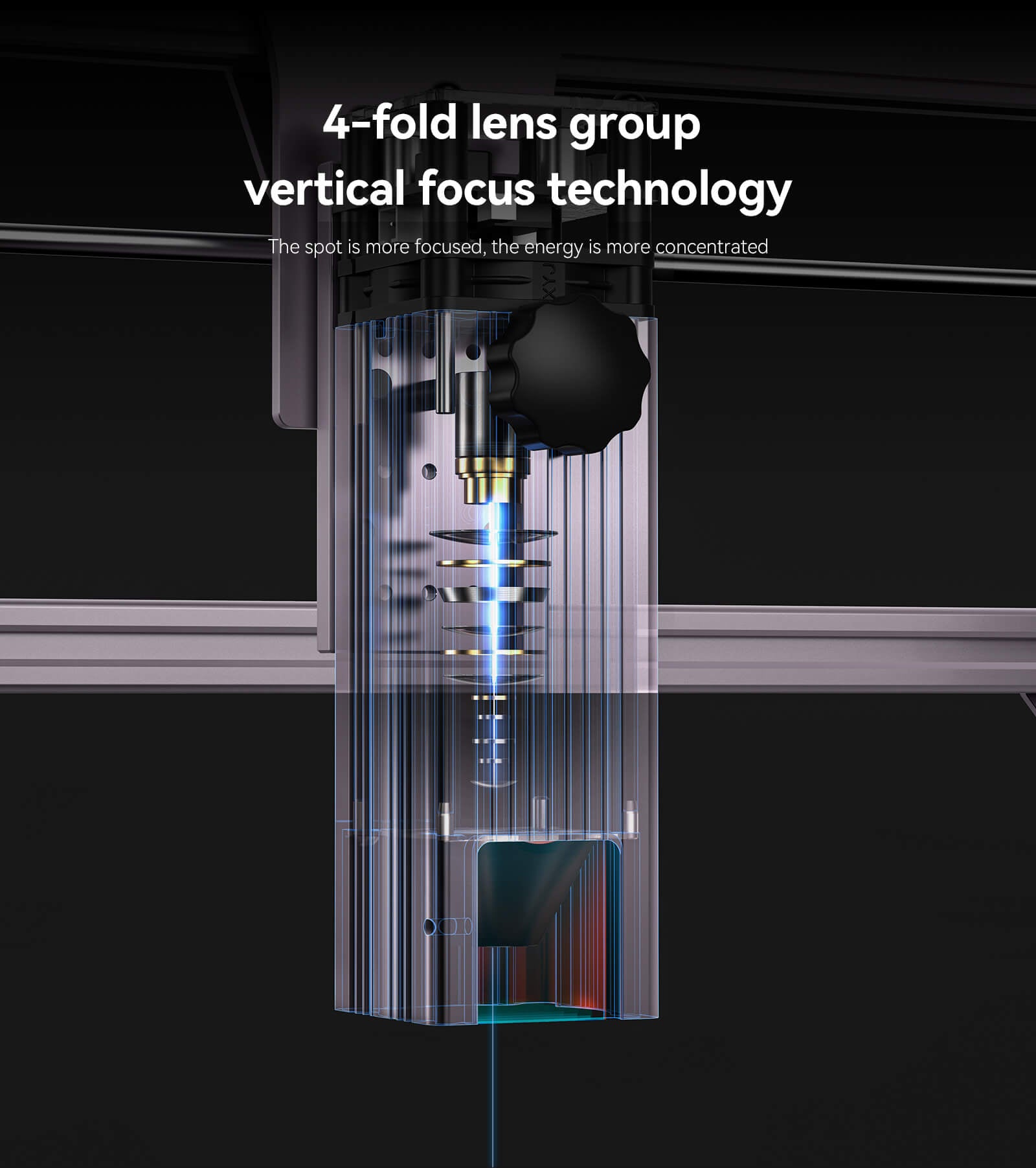

| Focusing Method | Fixed focus laser; no manual focusing required |

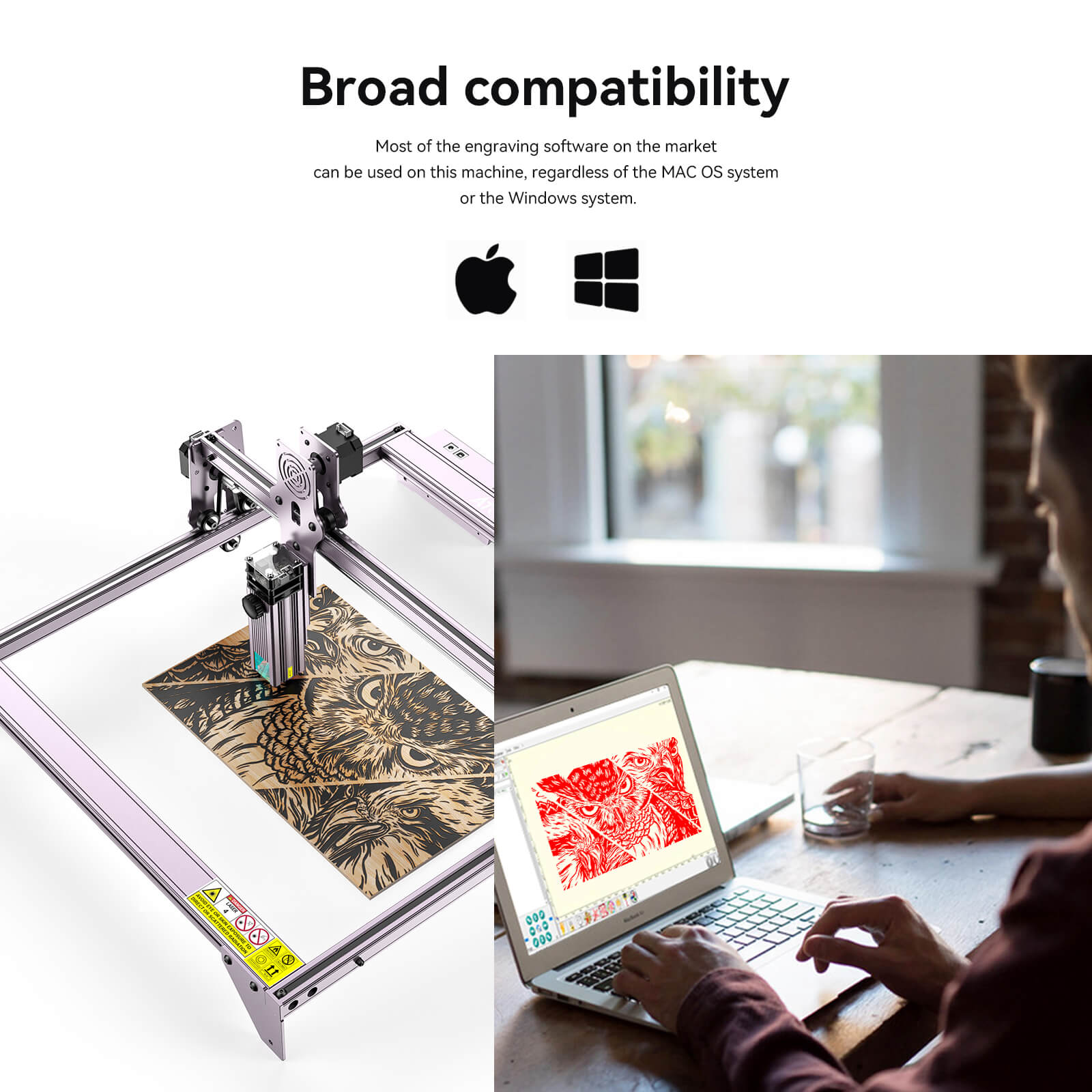

| Operating Software | LaserGRBL (Free, Windows) / LightBurn (Paid, Windows, macOS & Linux) |
| Input Format | NC, BMP, JPG, PNG, DXF, etc. |
| Input Voltage | AC100–240V, 50/60Hz |
| Output Voltage | DC12V, 5A |

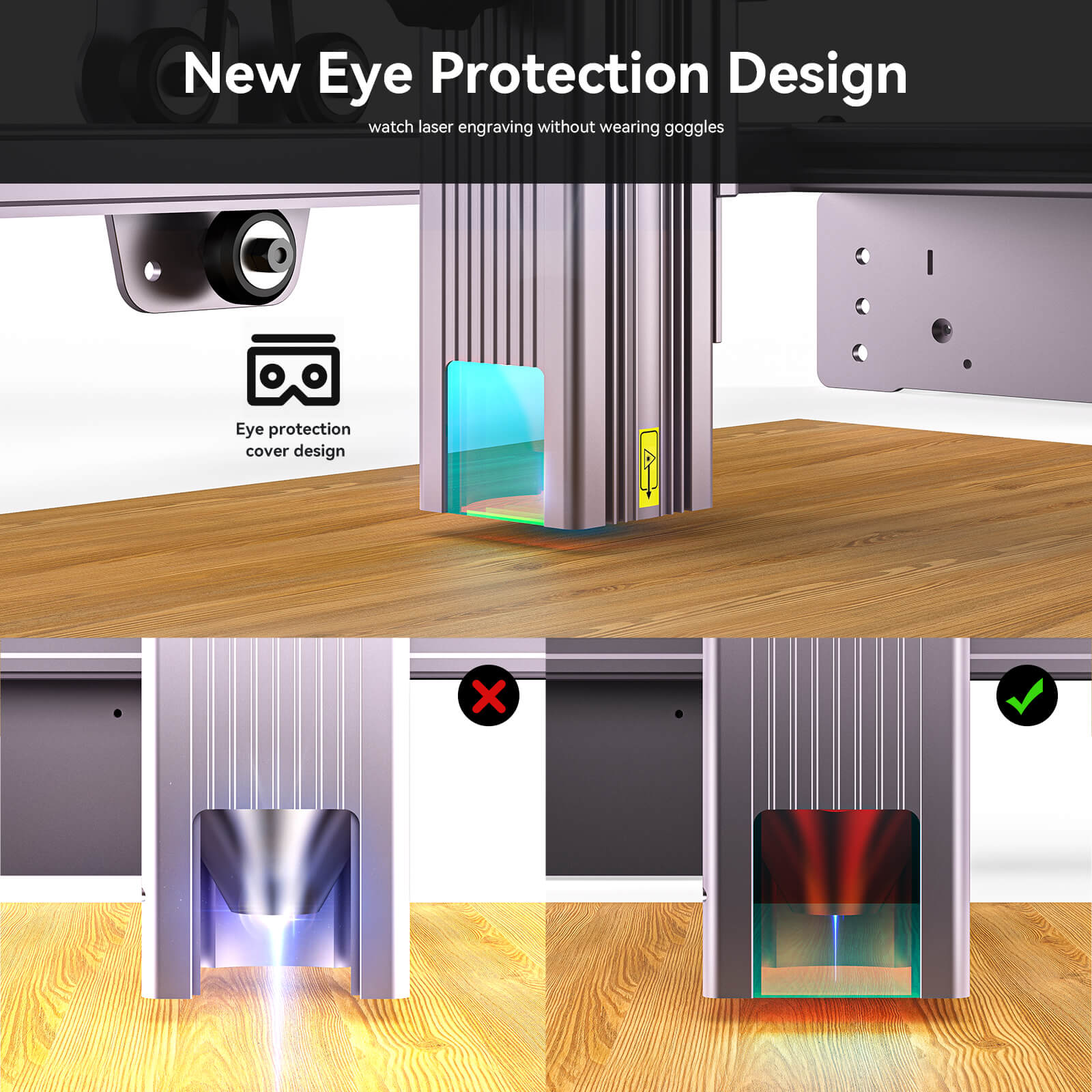

| Laser Protective Cover | Helps protect the user’s eyes and prevents pets from contacting the laser spot |

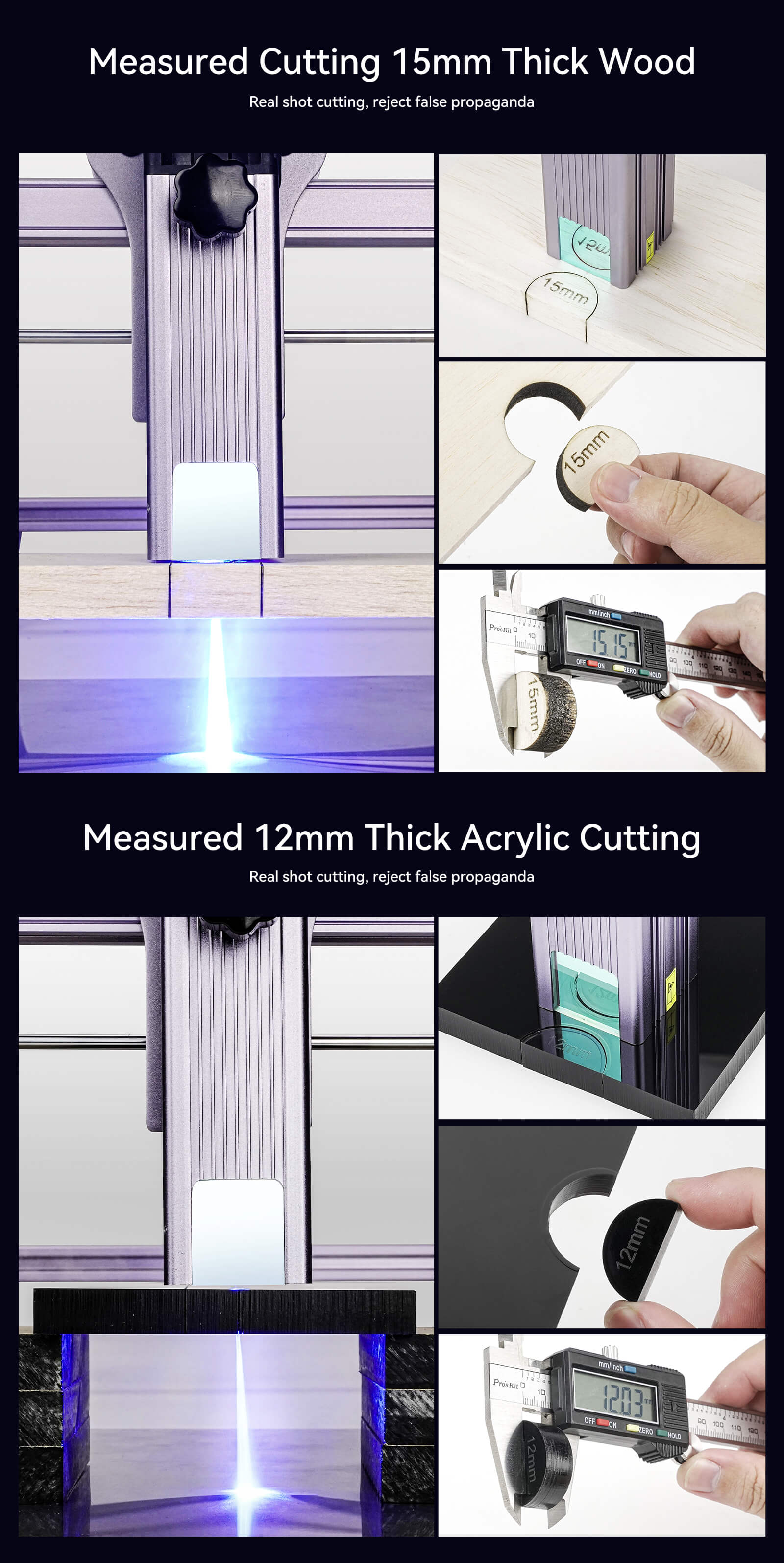

| Cutting Objects | 1/5″ wood and acrylic; up to 1/2″ with repeated cutting, depending on material |

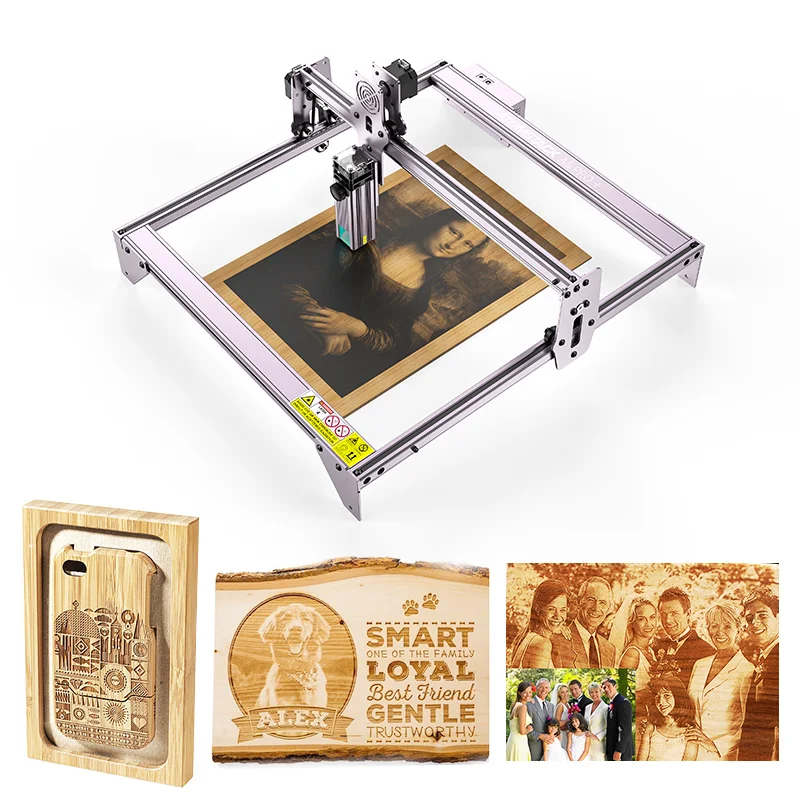

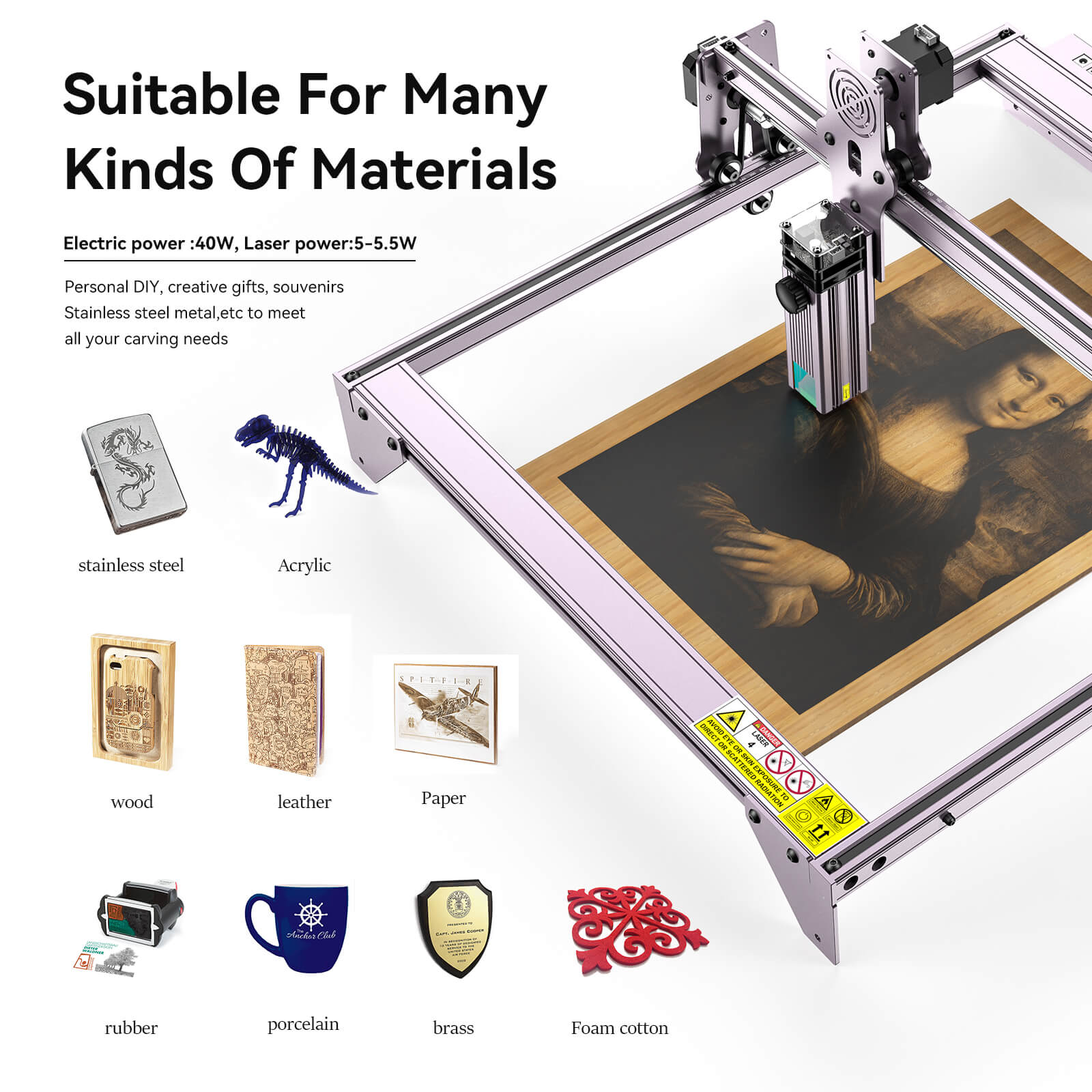

| Carving Objects | Wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, lacquered metal, ceramic |
| Equipment Net Weight | 3.426 kg |
| Package Weight | 5.072 kg |
| Equipment Size | 570 × 600 × 270 mm |
| Packing Size | 620 × 345 × 130 mm |
| Certification | CE, FCC, RoHS, FDA |

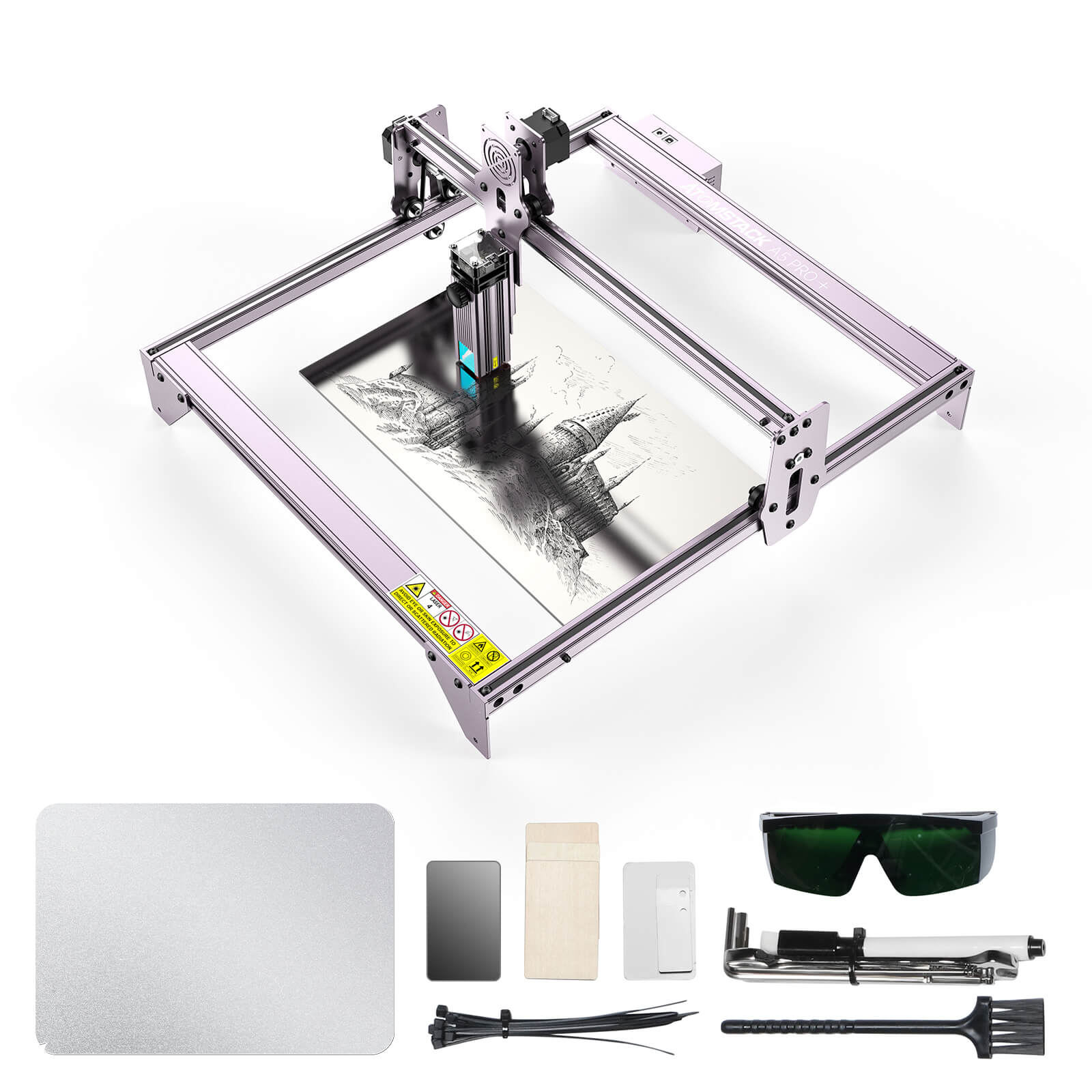

A5 Pro+ PACKAGE:
1* X-axis assembly
2* Section 57CM
2* Section 48CM
1* Control box
3* support legs
1* Goggles
1* laser
1* 12V2A power adapter
1* Power switch line
1* USB cable
Step 1~5 installation package
1* M5 wrench
10* rolled belt
3* small wood
1* focal length film
1* M3 wrench
1* marker
1* brush
3* small acrylic
1* Stainless steel backing plate for cutting
Notes And Precautions:
- Do NOT operate laser without eye protection.
- When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire
- Please set up laser engraver in the fireproofing area, with good ventilation。
- Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use this laser without direct Adult supervision and proper eye protection。
- Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical harm is possible if used improperly。
- Please avoid strongly impact on the machine。
- Use the laser engraver in a room that can be closed by a door and ensure that neither laser beams nor stray light can penetrate through the windows。
- While using the laser engraver, use door signs or a warning light on the door that indicates the laser engraver is in operation。
- Please do not touch the heat sink, when the laser engraver just stops working, it may scald your hands。
