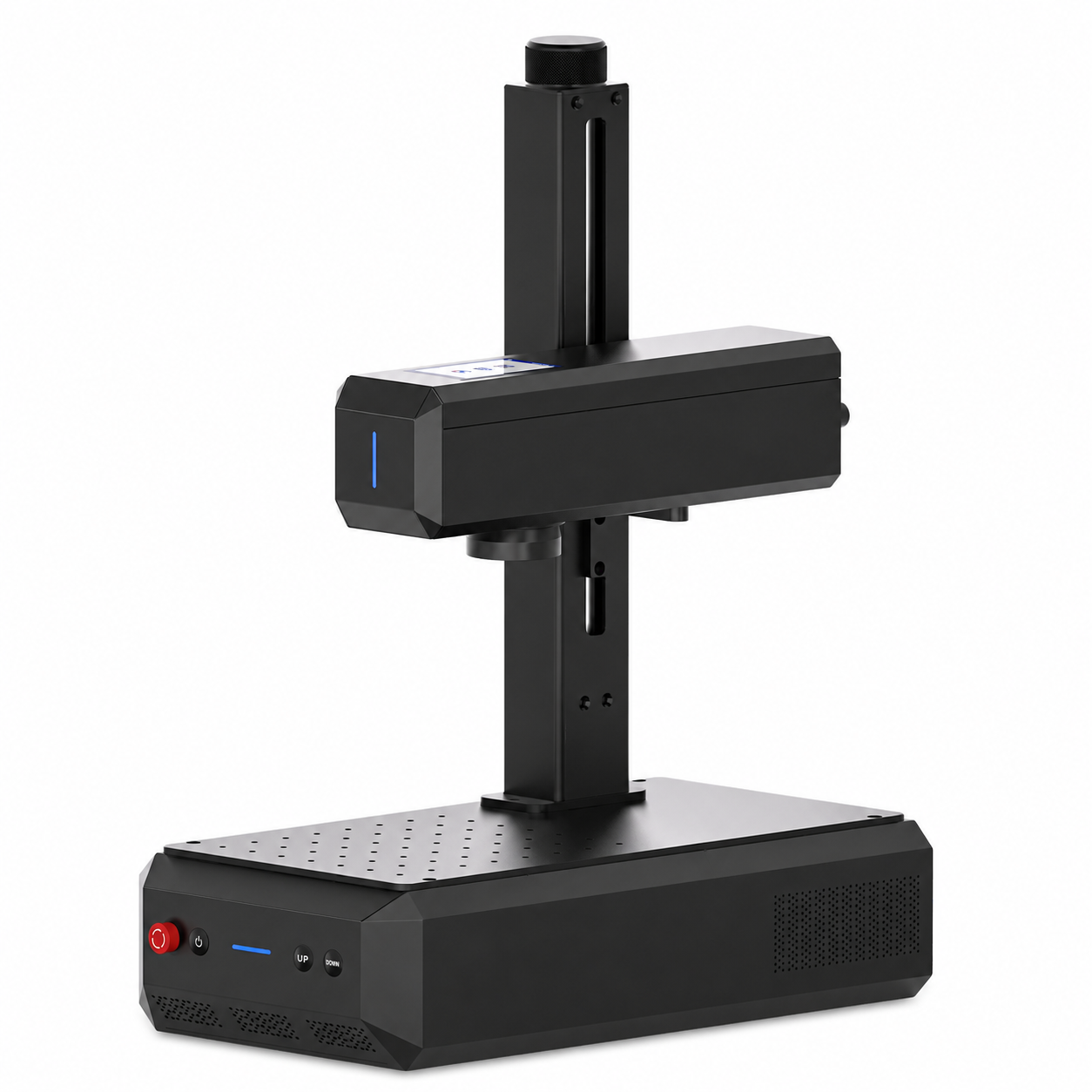

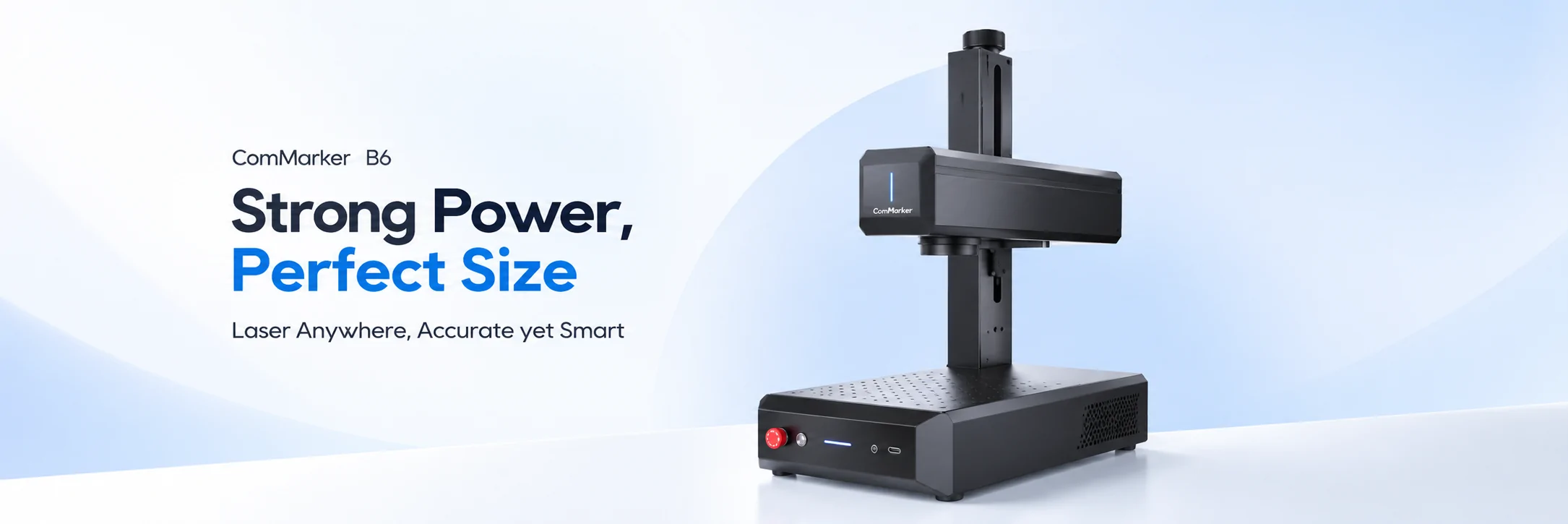

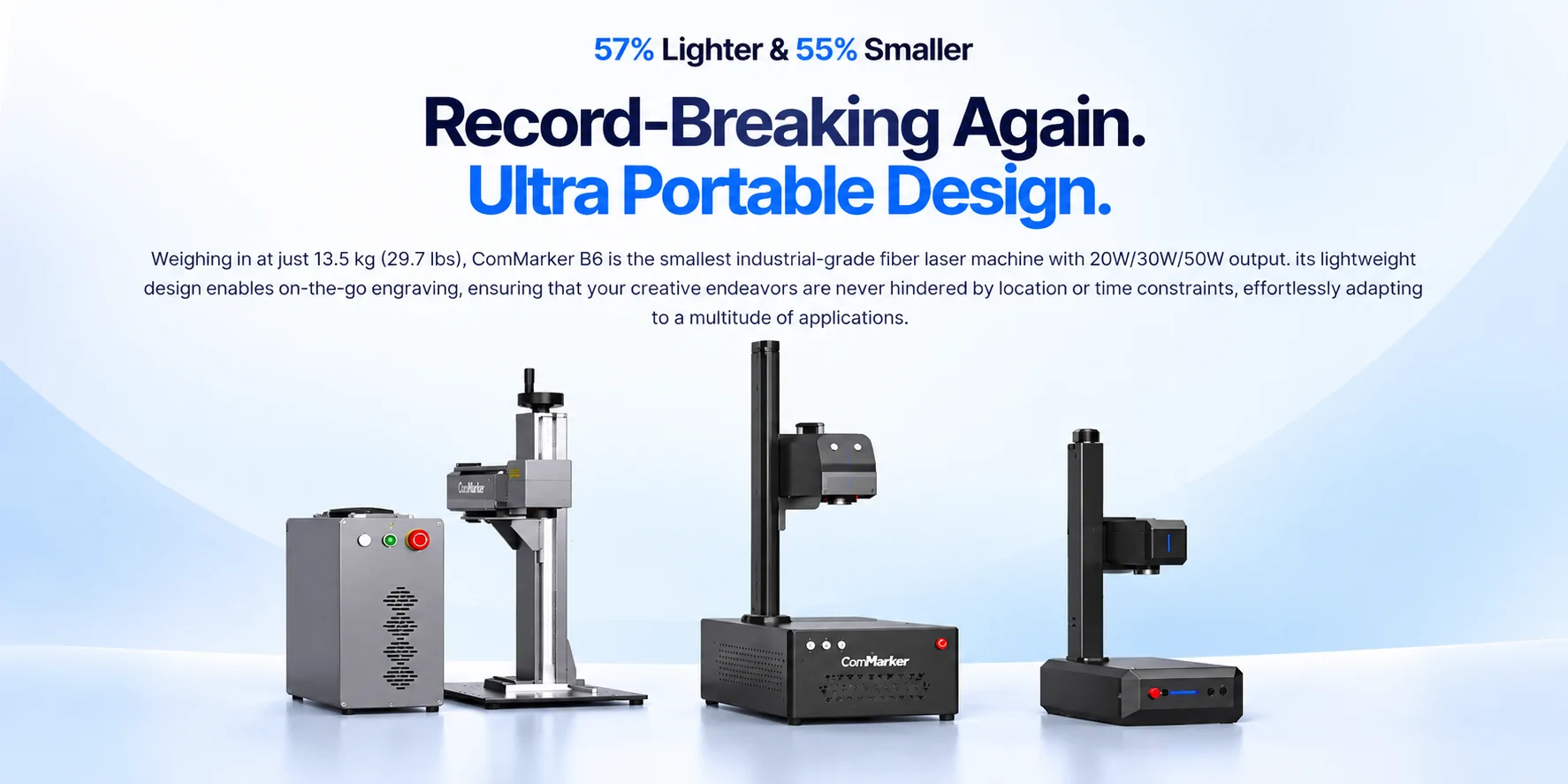

ComMarker B6 Fiber Laser Engraver
| Effect Power | B6 20W, B6 30W |
|---|---|

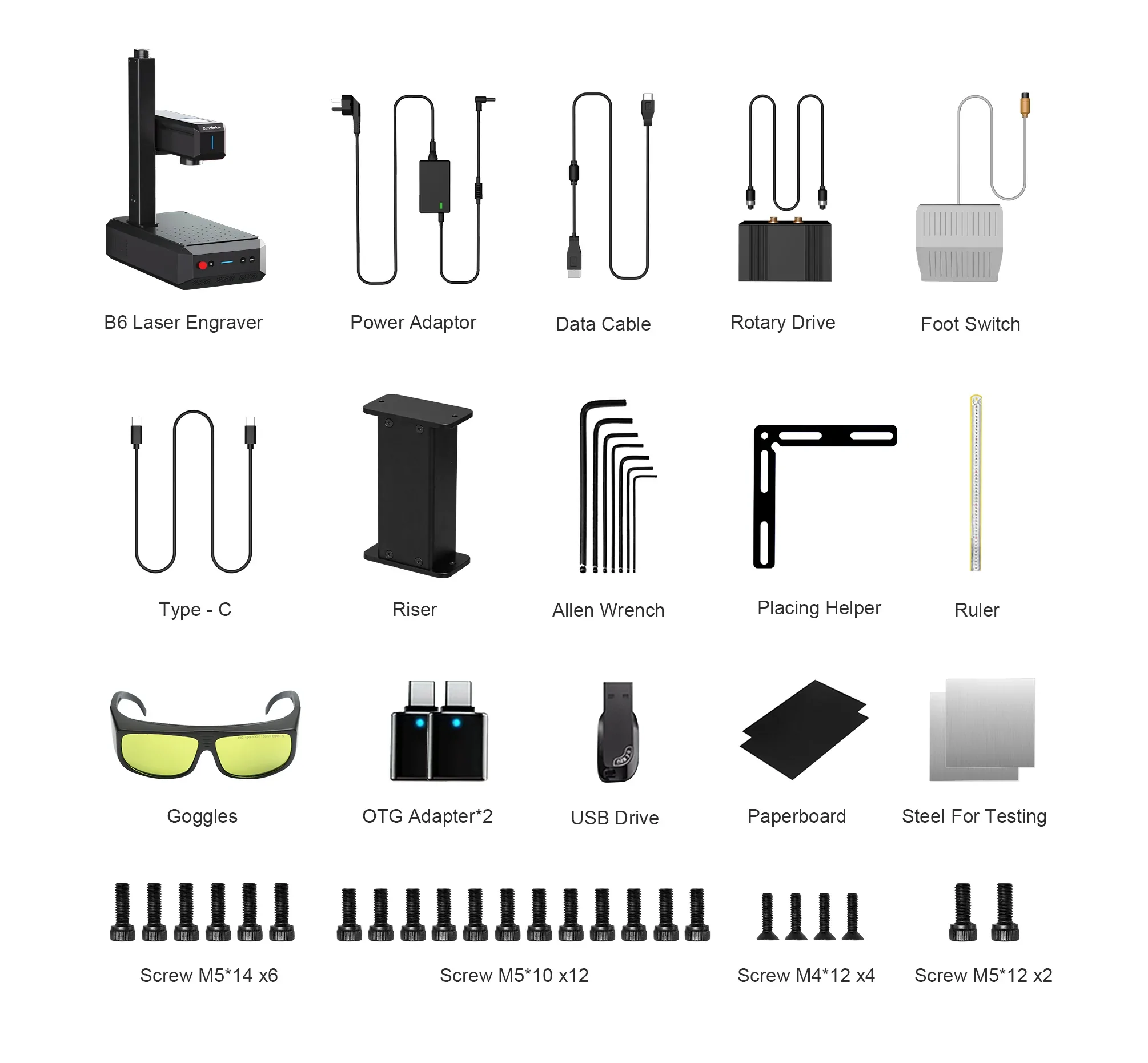

| Package | B6 Basic Bundle, B6 Rotary Bundle, B6 Safety Bundle, B6 Ultimate Bundle |
Book a Personalized Product Demo
| Category | Specification | Details |
|---|---|---|
| Laser Technology | Laser Type | Fiber Laser |
| Laser Power | 20W / 30W | |
| Laser Wavelength | 1064 nm | |
| Expected Service Life | 100,000 hr | |
| Processing Capacity | Processing Mode | Laser Engraving, Laser Cutting |
| Supported Materials | Stainless Steel, Aluminum, Brass, Copper, Gold, Silver, Stone, Black Acrylic, Leather, Plastic | |
| Working Area | 5.9″ × 5.9″ (150 mm × 150 mm) | |
| Optional Working Area | 7.8″ × 7.8″ (200 mm × 200 mm) with Optional Lens | |
| Max. Working Speed | 15,000 mm/s | |
| Max. Laser Cutting Capacity (Stainless Steel) | 0.6 mm in Multiple Passes (20W) / 0.8 mm in Multiple Passes (30W) | |
| 360° Rotary Engraving | Supported | |
| Accuracy & Precision | Laser Spot Dimension | 0.015 mm |
| XY Positioning Accuracy | 0.001 mm | |

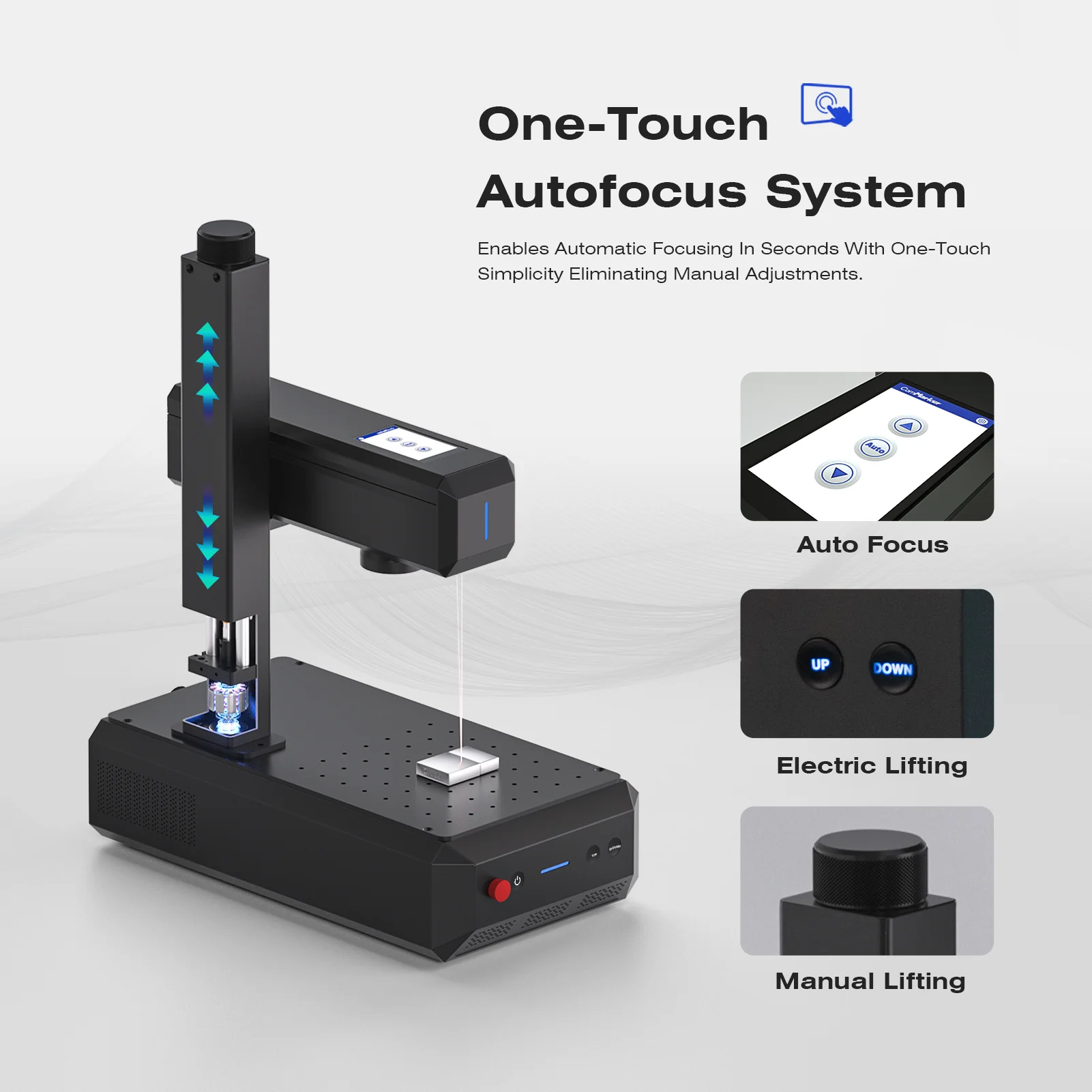

| Focus Mode | Auto Focus | |
| Z Height Measuring Method | Triangulation | |
| Z Height Measuring Accuracy | 0.001 mm | |

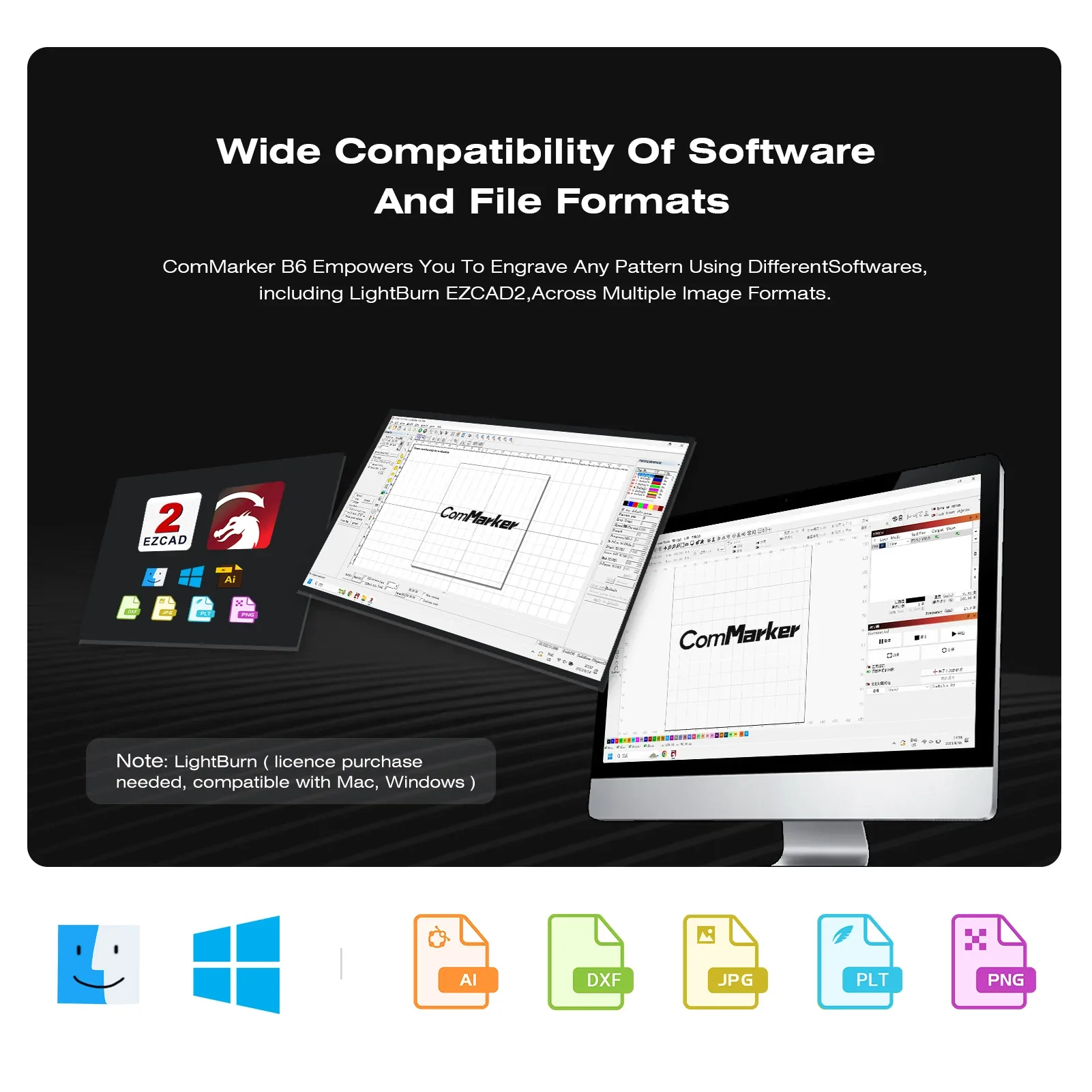

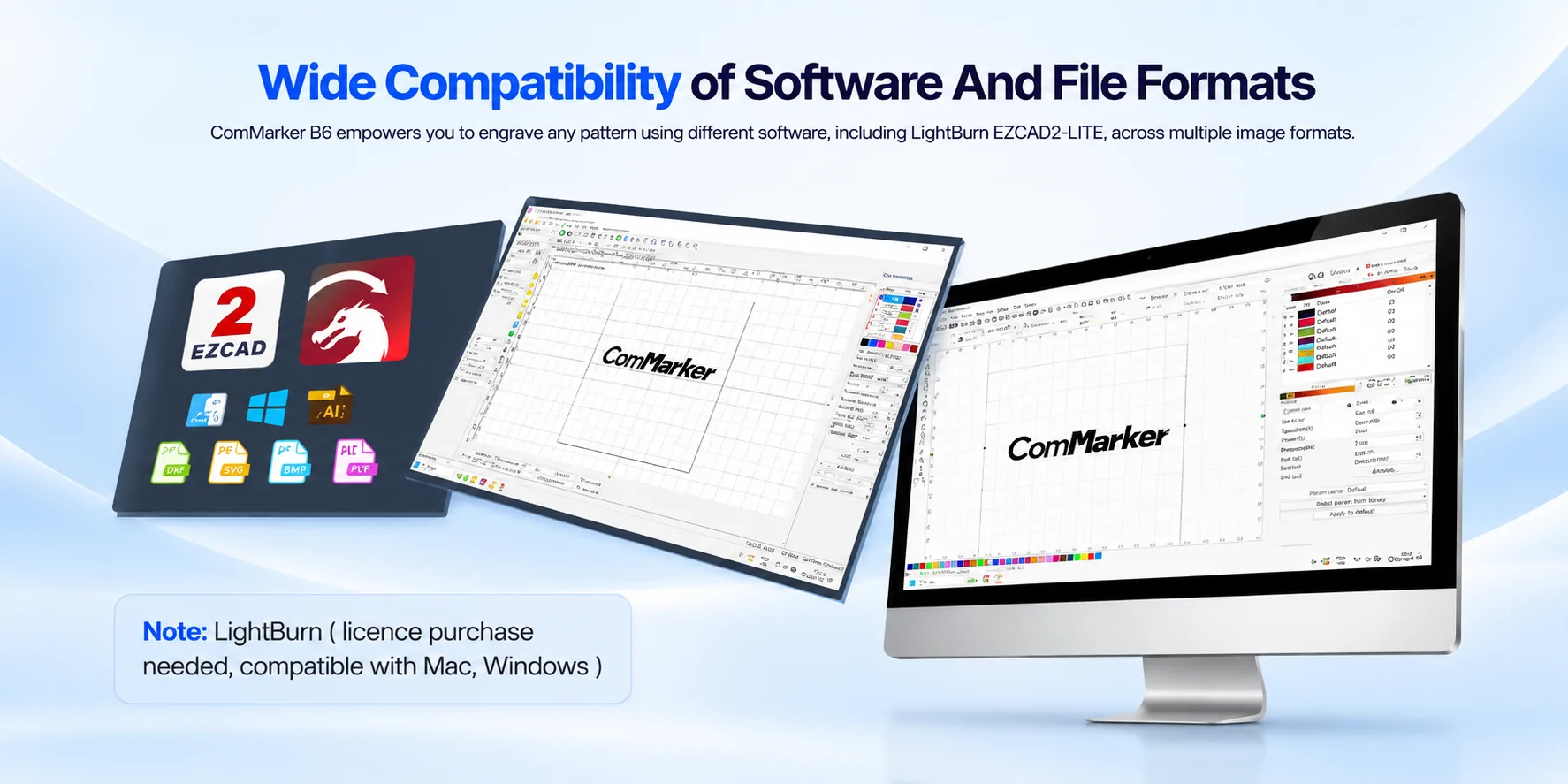

| Smart Software | Supported Software | EZCAD / LightBurn |
| Operating System | Windows / macOS | |
| Connection Method | USB | |
| Supported Files | BMP, GIF, JPG, JPEG, DXF, DST, AI, TGA, PNG, TIF, TIFF, SVG, G-CODE, PLT, etc. | |

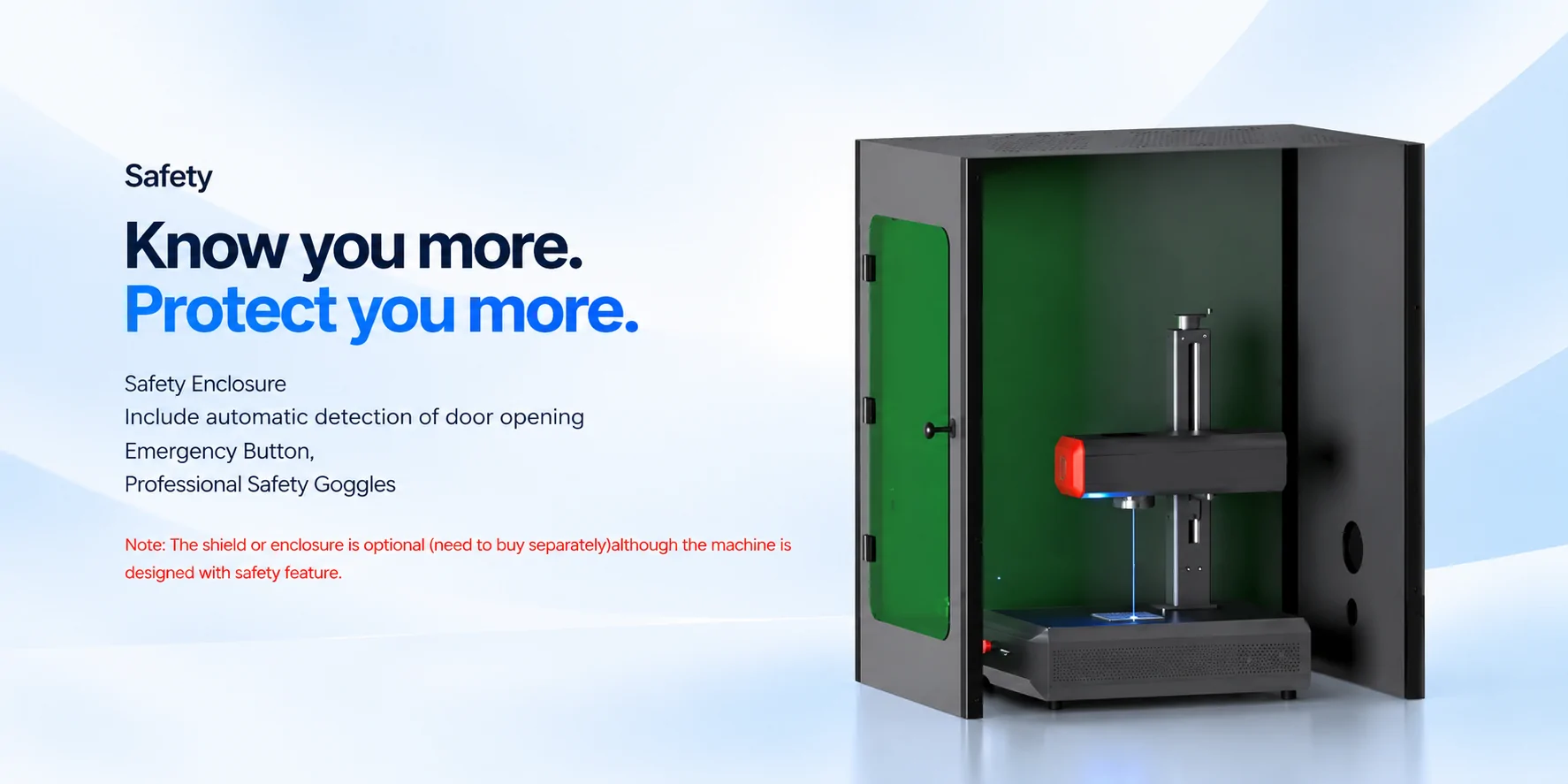

| Safety | Safety Certification | Class 1 Laser Safety (With Enclosure) / Class 4 Laser Safety (Single Machine) |
| Temperature Detection | Supported | |
| Door Sensor | Supported (With Enclosure) | |
| Body | Build Volume | 16.9″ × 9.4″ × 21.7″ (430 mm × 240 mm × 550 mm) |
| Product Weight | 29.7 lbs (13.5 kg) | |
| Chassis & Shell | Aluminum, Steel, Acrylic | |
| General Information | Laser Frequency | 27–60 kHz (20W) / 30–60 kHz (30W) |
| Pulse Width | 80–100@27 kHz (20W) / 70–100@30 kHz (30W) | |
| Maximum Pulse Energy | 0.7 mJ (20W) / 1 mJ (30W) | |
| Power Adapter Input Voltage | 100–230V | |
| Working Temperature | 50–83°F (10–28°C) |

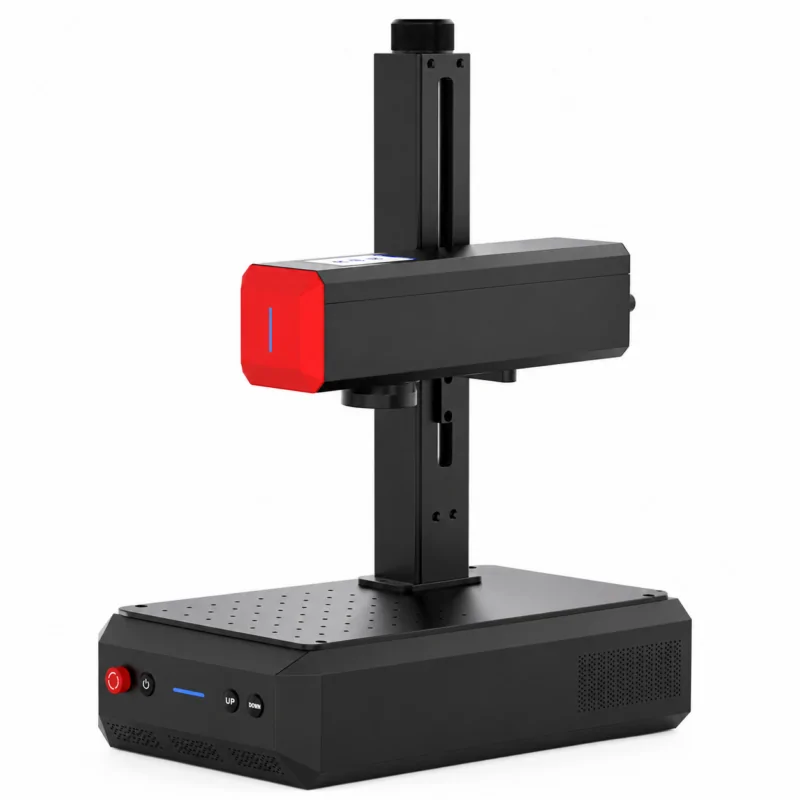

Related Products
