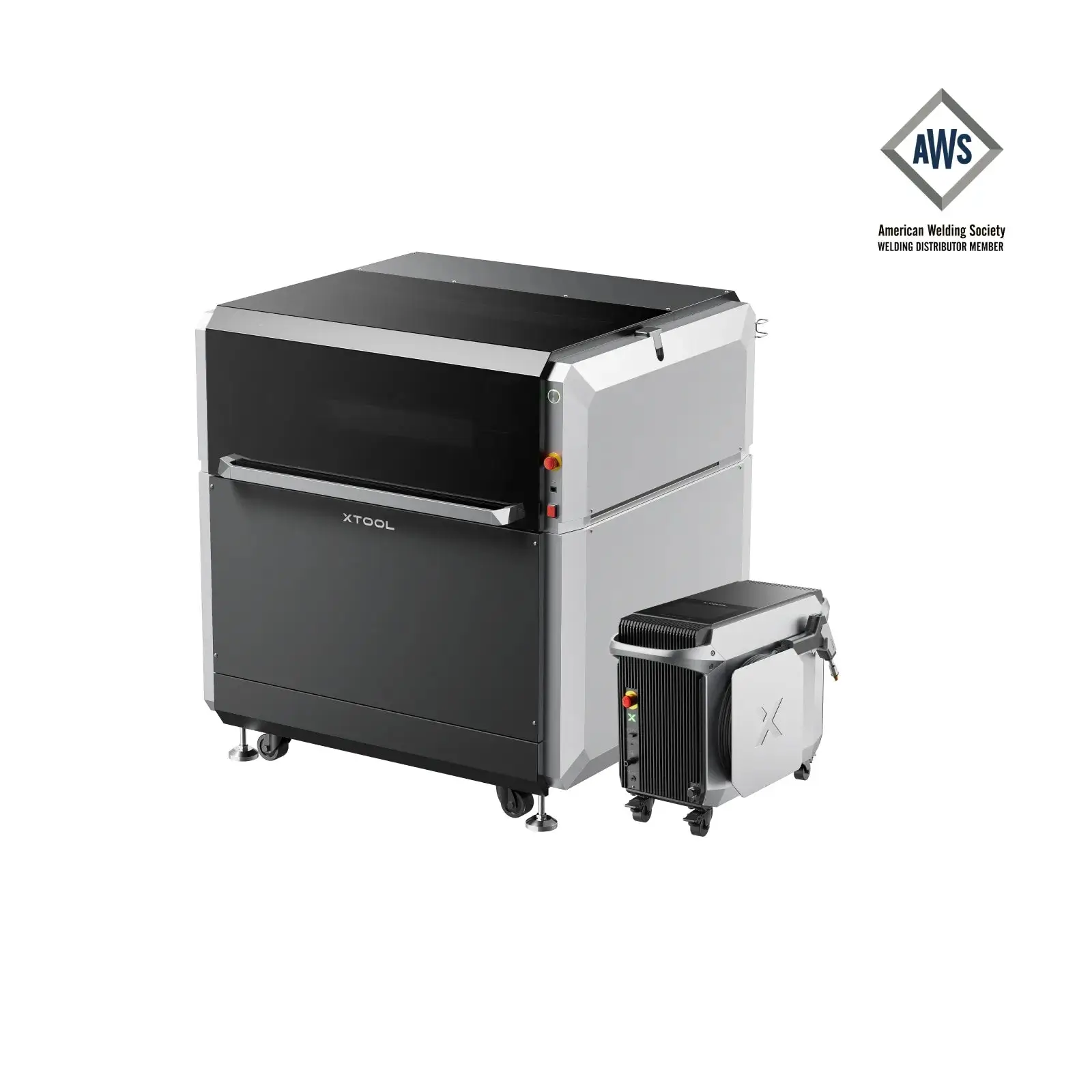

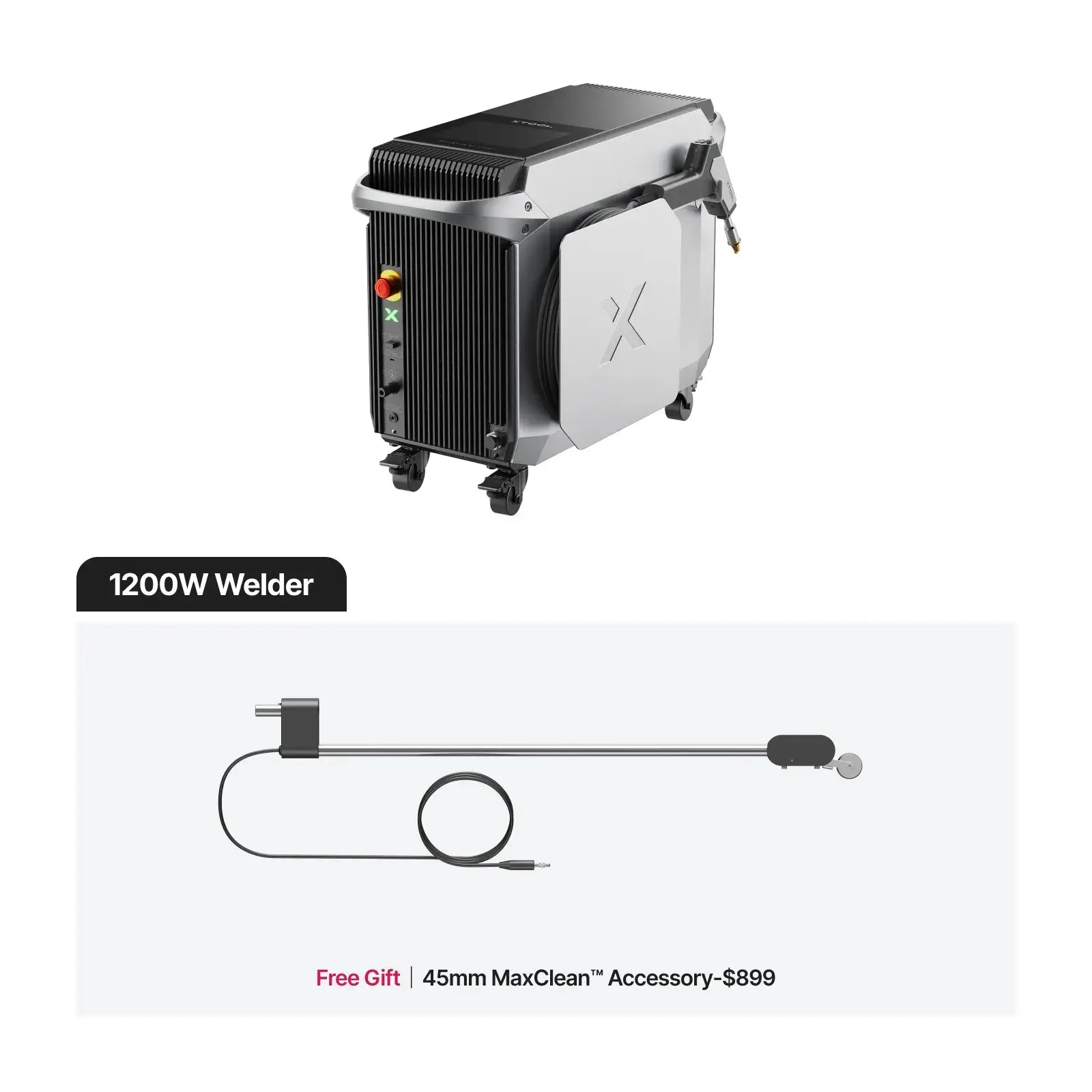

xTool MetalFab Laser Welder and CNC Cutter
| Machine Power | 800W Welder + Cutter, 1200W Welder + Cutter |
|---|
Book a Personalized Product Demo
Why xTool MetalFab is the Best Choice?
Maximize Returns Over the Lifetime
3-in-1 Industrial Machine; Cut Gas & Metal Costs by 50% with Self-Developed Tech
Over 10,000 Hrs Lifespan
Aviation-Grade Materials
Continuous Update
Functions & Accessories
Comprehensive Service & Support
Global Demo Room & US/EU-Based Service
Ease of Use
108+ Preset Parameters; One-Click Setup
High-Value Technology
Coherent Laser Source; VibeFreeCut™; FlexiTrack™; ObstacleFree™; Dual Camera
General Specification
| Processing Capacity | xTool MetalFab Laser Welder 1200W | xTool MetalFab Laser Welder 800W |
|---|---|---|
| Laser Power | 1200W | 800W |
| Laser Type | Fiber Laser | Fiber Laser |
| Processing Mode | Welding / Cutting / Rust Removal & Cleaning | Welding / Cutting / Rust Removal & Cleaning |
| Welding Mode | Continuous Welding / Spot Welding / Pulse Welding | Continuous Welding / Spot Welding / Pulse Welding |
| Supported Materials | Stainless steel, aluminum, carbon steel, titanium, nickel alloy, brass, galvanized sheet, magnesium, etc. | Stainless steel, aluminum, carbon steel, titanium, nickel alloy, brass, galvanized sheet, magnesium, etc. |
| Processing Thickness | 0.0078 – 0.197 in (0.2 – 5 mm) | 0.0078 – 0.157 in (0.2 – 4 mm) |
| Wavelengths | 1080 ± 10 nm | 1080 ± 10 nm |
| Photoelectric Conversion Rate | 36% | 36% |
| Recommended Gases | Nitrogen or Argon | Nitrogen or Argon |
| Cooling System | Air-cooling | Air-cooling |
| Safety Certification | Class 4 Laser Safety | Class 4 Laser Safety |
| Rated Power | 4200W | 3000W |
| Input Voltage | 200 – 240V, AC 50/60Hz | 200 – 240V, AC 50/60Hz |
| Full-load Current | MAX 21A | MAX 15A |
| Storage Temperature | 14 ℉ – 140 ℉ (-10 ℃ – 60 ℃) | 14 ℉ – 140 ℉ (-10 ℃ – 60 ℃) |
| Operation Temperature | 14 ℉ – 104 ℉ (-10 ℃ – 40 ℃) | 14 ℉ – 104 ℉ (-10 ℃ – 40 ℃) |
| Machine Dimensions | 28.66 × 12.87 × 20.16 in (728 × 327 × 512 mm) |
24.88 × 11.97 × 18.58 in (632 × 304 × 472 mm) |
| Machine Weight | 38.2 kg | 35 kg |
| Integrated Wire Feeder | No (Free Wire Feeder Machine Included) |
Yes |
| Cable Length | 196.85 in (5 m) |
137.8 in (3.5 m) |

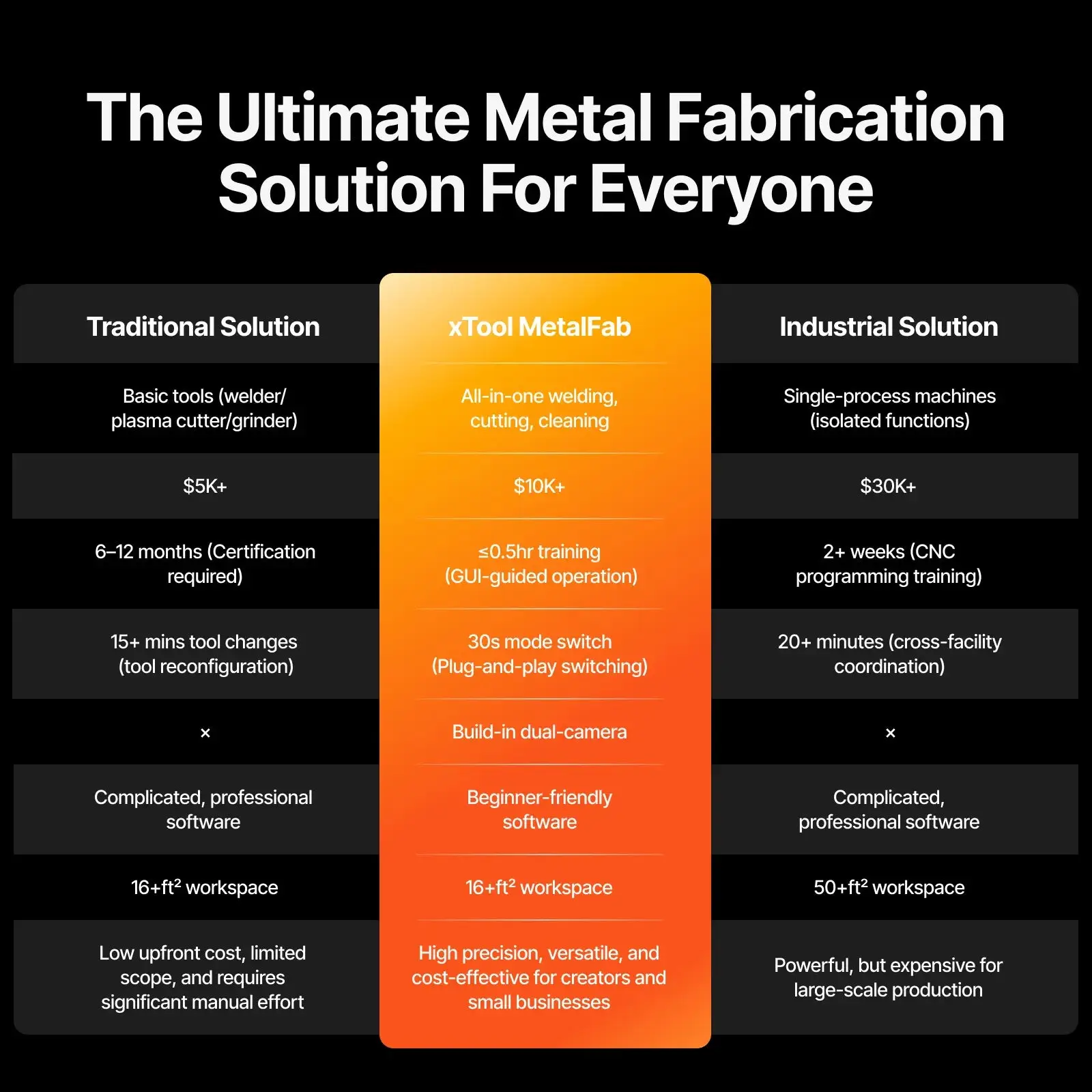

xTool MetalFab VS Other Brands
| Feature | xTool MetalFab | Industrial Laser Machines | Other Laser Machines | Traditional Machines |
|---|---|---|---|---|
| All-in-one Integrated Solution | ✅ | ❌ | ✅ | ❌ |
| Welding Performance | 0.2–5 mm（1200W）SGS Certified Welding Quality | 0.2–5 mm（1200W） | 0.2–5 mm（1200W） | Up to 25 mm (High Learning Curve) |
| Cutting Performance | Max. 10 mm（1200W）Smooth-edge cuts, 0.1 mm precision | Max. 10 mm（1200W）Smooth-edge cuts, 0.1 mm precision | Max. 10 mm（1200W）Noticeable vibrations | Max. 10 mm Visible burrs |
| Investment (Machine Price) | $13,000+ | $30,000–$60,000+ | $10,000+ | Lowest Price |
| Annual Gas Costs | $2k gas costs / year | $8k gas costs / year | $4k gas costs / year | $4k gas costs / year |
| Industrial-grade Chip (10,000+ hours lifespan) | ✅ | ✅ | ❌ | ❌ |
| Dual Camera | ✅ 98.7% material utilization | Available in premium models | ❌ ~80% utilization | ❌ ~80% utilization |
| User-Friendly Software & Free Design Files | ✅ | ❌ | ❌ | ❌ |
| 1-on-1 Training & Local-Based Service | ✅ | ✅ | ❌ | ❌ |
| Weight | Max. 188 kg | 1,000 kg+ | Max. 610 kg | — |
