Automatic Conveyor Feeder for xTool P2
| Brand | Xtool |
|---|---|
| HSN Code | 84669390 |
| Condition | NEW |
| Max. Engraving Speed | 160mm/s |
Book a Personalized Product Demo
Automatic Conveyor Feeder for xTool P2

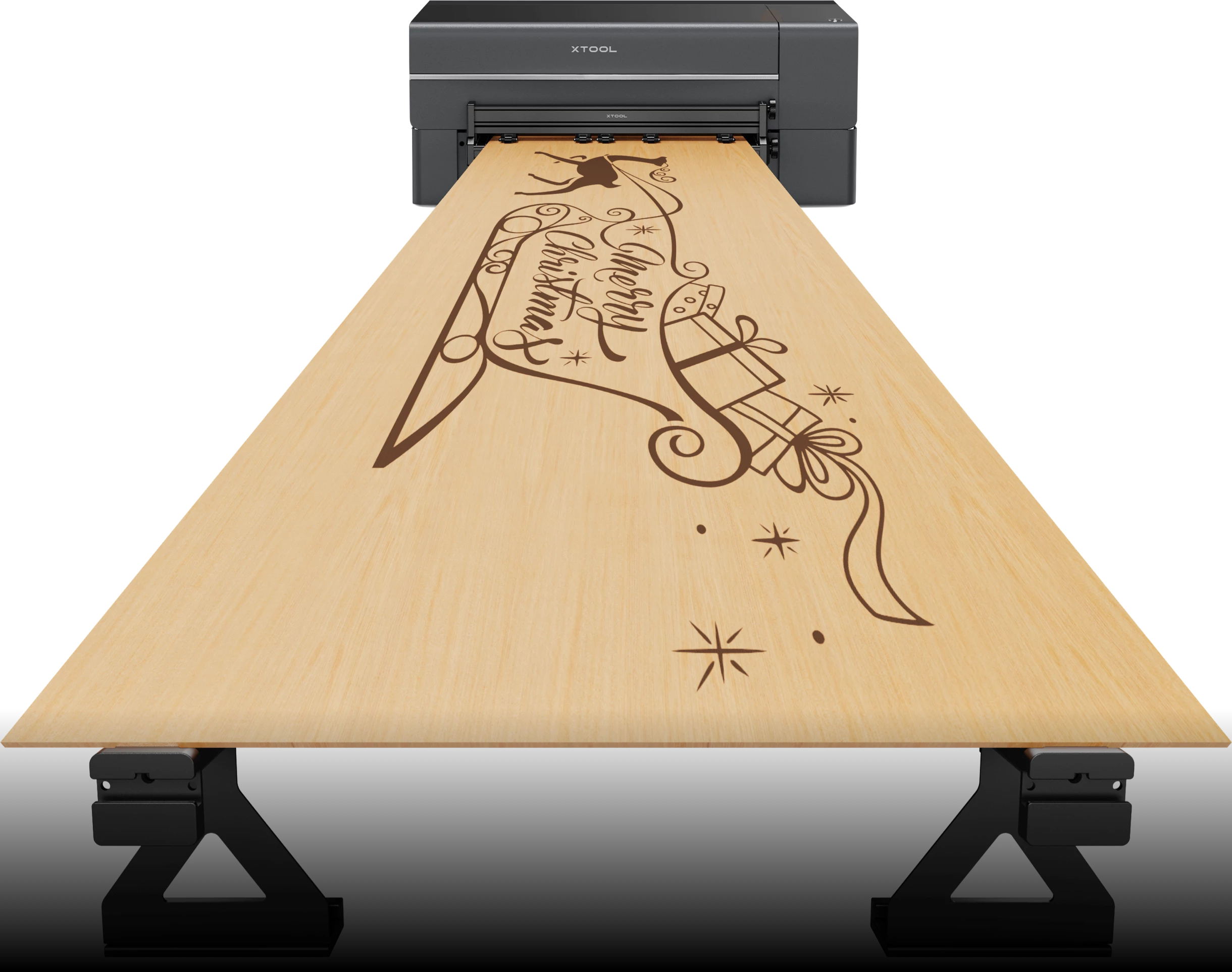

Larger Area,
Amazing Effects
The maximum processing area is supersized up to 118”×19.6”, giving you the option to engrave anything up to 118 inches long in size effortlessly, and set more quantity at one time.

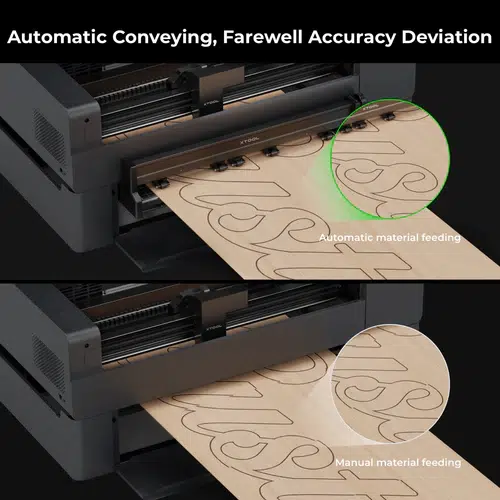

Automatic Conveying,
Farewell Accuracy Deviation
Automatic engraving path planning and material conveying;
Farewell to manual material feeding and accuracy deviation.
Creations Unrestrained
by Materials

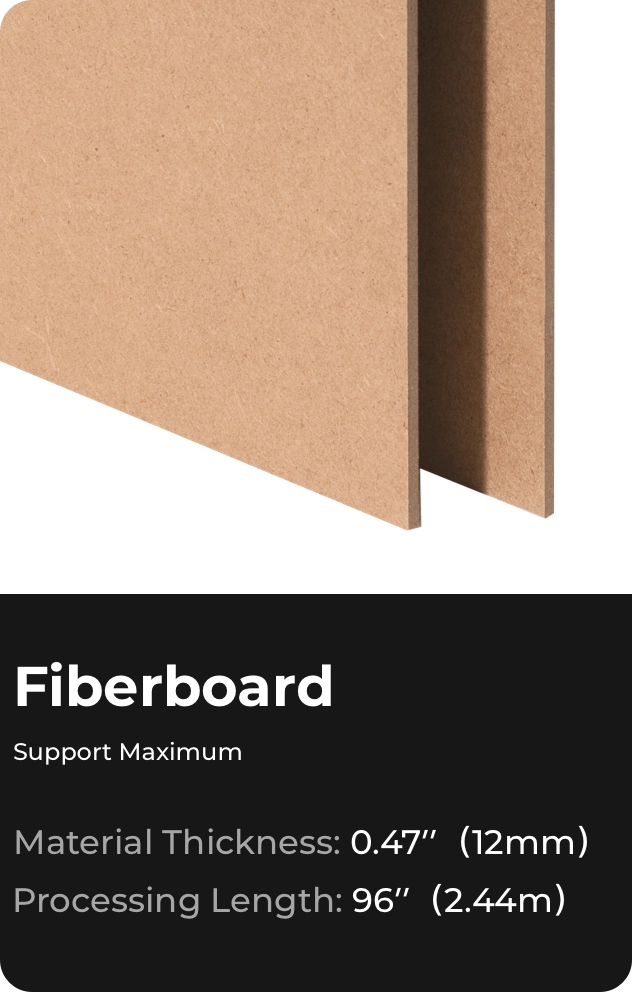

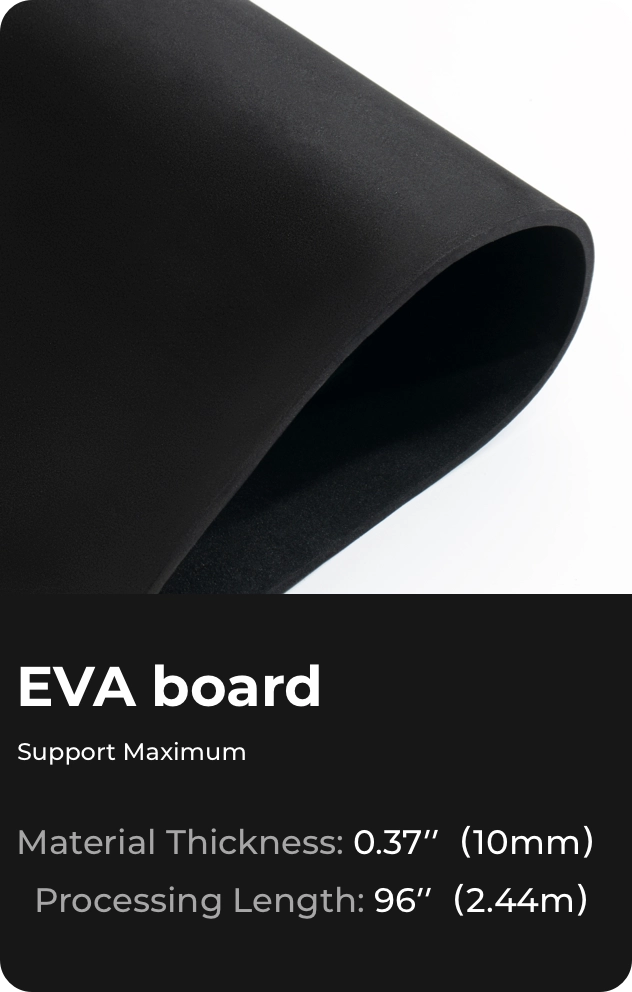

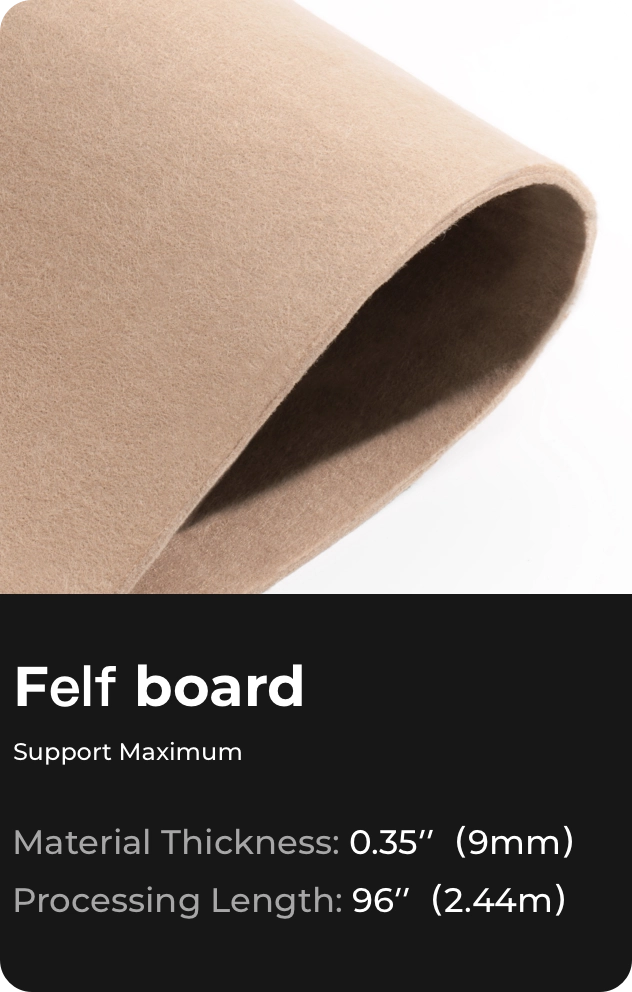

The material range is expanded from plywood, acrylic and fiberboard to soft materials like felt, cork and EVA.
*Note: During processing, there may be a deviation of less than 2mm per 1000mm of conveying.
Creations Made Longer and Higher

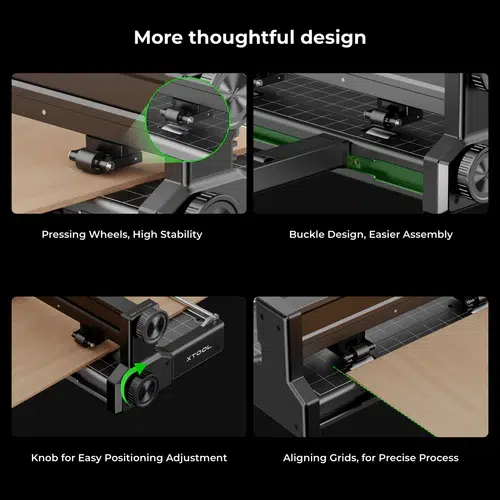

More Thoughtful Design

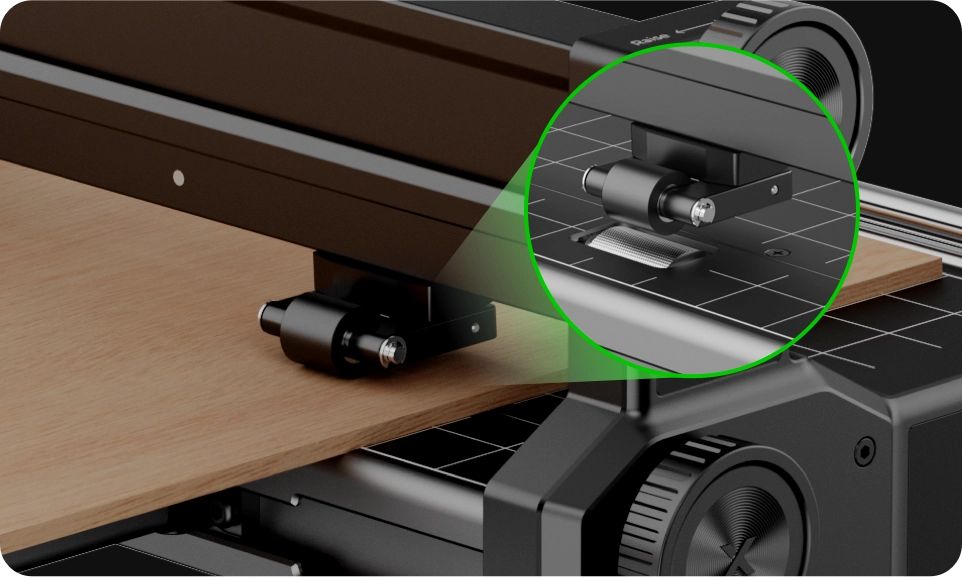

Pressing Wheels, High Stability
The upper and lower pressure wheels use anti-slip materials, and materials of various sizes can be easily fixed to prevent them from slipping or shifting during the conveying process.

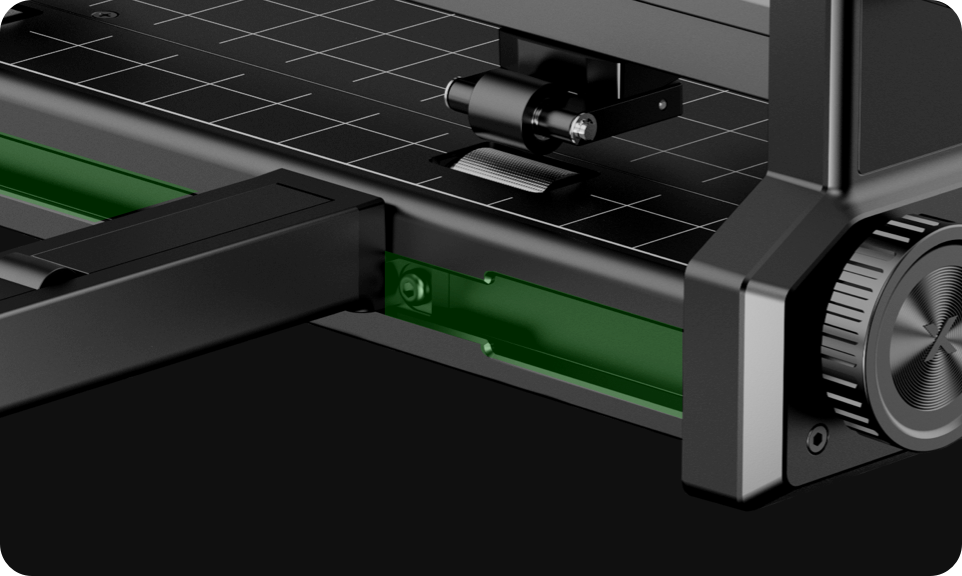

Buckle Design, Easier Assembly
With buckle design, the conveyor rail can be installed easily.

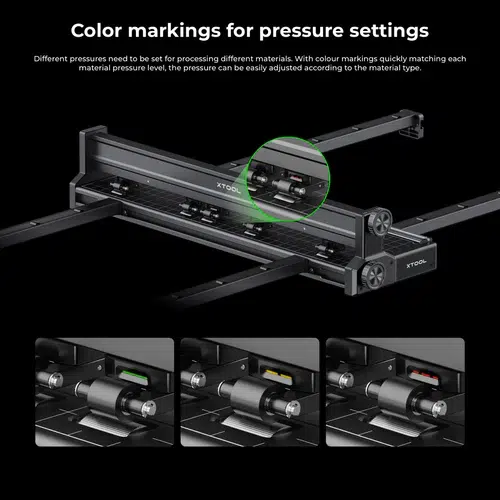

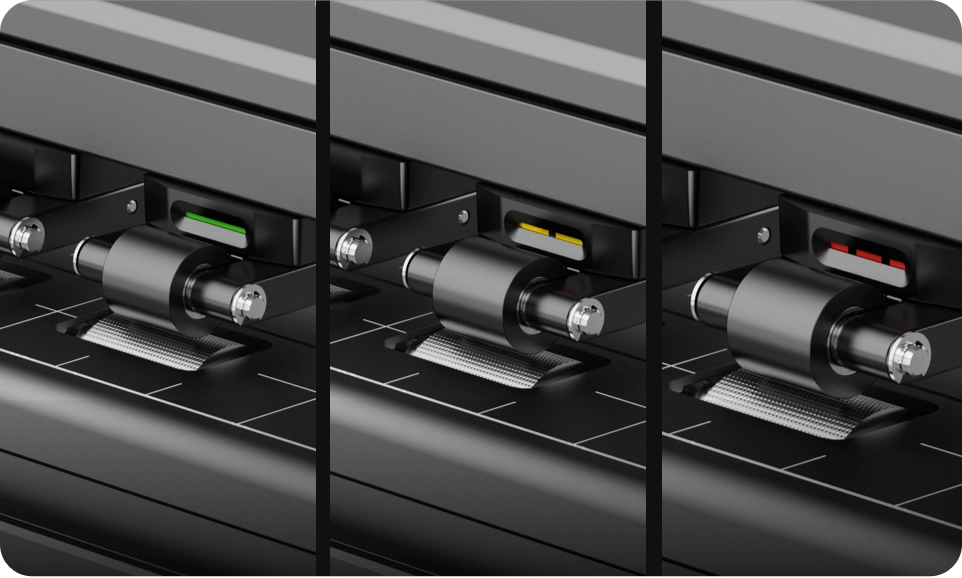

Color Markings for Pressure Setting
Different pressures need to be set for processing different materials. With color markings quickly matching each material pressure level, the pressure can be easily adjusted according to the material type.

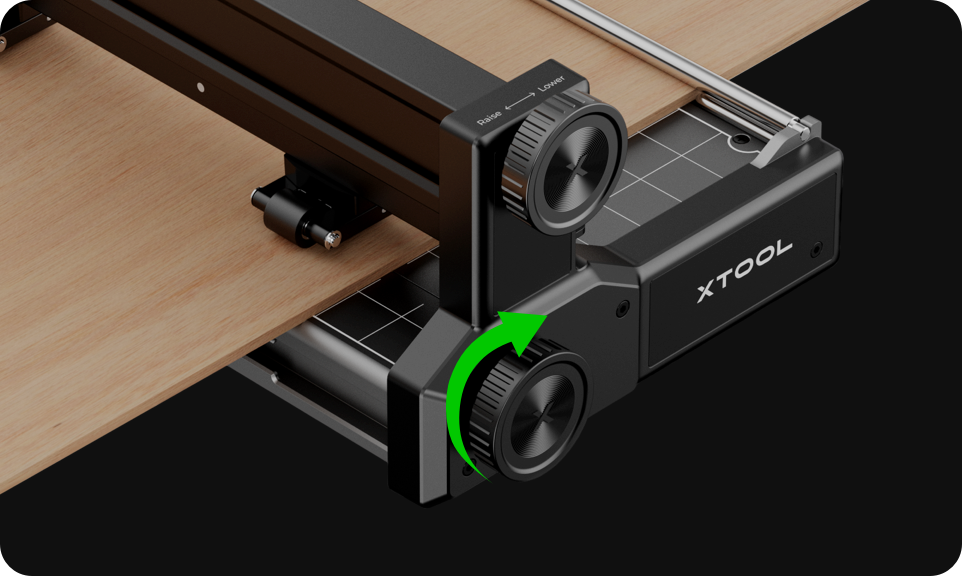

Knob for Easy Positioning Adjustment
Users can easily adjust the position of materials with the lower knob.

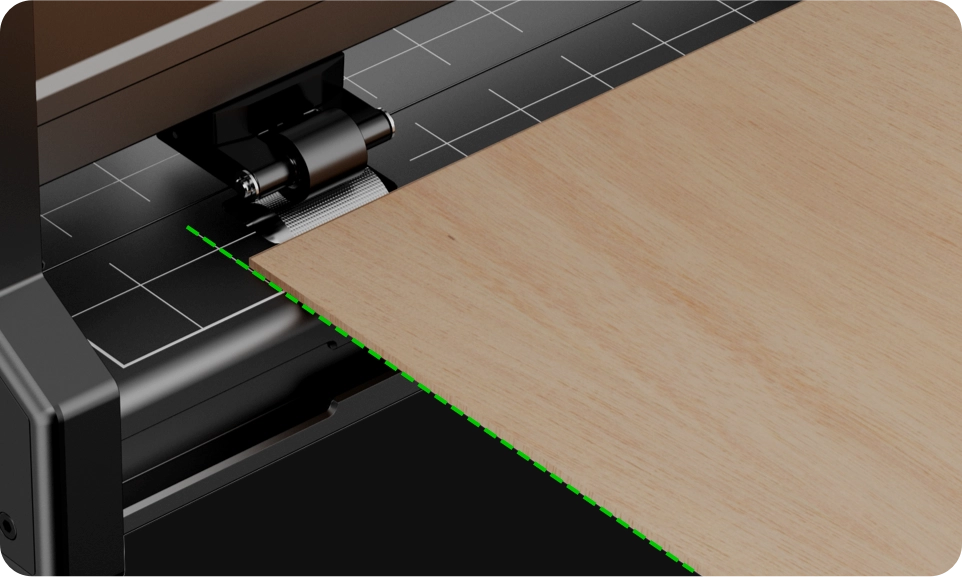

Aligning Grids, for Precise Process
Align the material with the grids on the conveyor feeder and convey the material to the device, so that the material is parallel to the conveying direction.
Specification
| Product Information | Automatic Conveyor Feeder for xTool P2 |
|---|---|
| Applicable to | xTool P2 |
| Package Size | 30.2”×10.1”×9.1” (769×255×230mm） |
| Product Size | 27.1”×7.8”×5.3” (687×200×135mm) |
| Product Weight | 8.045kg |
| Max. speed | 160mm/s |
| Work Area | |
| Maximum Processing Area | 118”×19.6” (3000mm×500mm) |
| Maximum Material Width | 24.5” (624mm) |
| Minimum Material Width | 2.5” (65mm) |
| Maximum Material Thickness | 0.55” (14mm) |
| Conveyor Rail | Support Hard Material Length (including hanging in the air 30cm) |
Support Processing Length (including hanging in the air 30cm) |
|---|---|---|
| Basic (2 pairs)*1 | 39” (1m) | 34” (0.85m) |
| Basic (2 pairs)*1+add on kit (2 pairs)*1 | 64.5” (1.64m) | 58.6” (1.49m) |
| Basic (2 pairs)*1+add on kit (2 pairs)*2 | 90” (2.3m) | 84.6” (2.15m) |
| Basic (2 pairs)*1+add on kit (2 pairs)*3 | 118” (3m) | 112.2” (2.85m) |
Soft Material
Without Conveyor Rail, the material can be hung down on both sides of the working area of conveyor feeder.（Some soft materials need to be processed with PET tape）
